Mantis Slim Brushless ESC 15A Switch BEC with BEC ouput 2A/5V for F3P Airplane 3D Flying
$14.29
About This Product :
- Super smooth and accurate throttle linearity and throttle response .
- High efficiency with low resistance and low heat MOSFET and CPU.
- Multiple Protection,such as over temperature protection ,low voltage protection and so on.
- Strong BEC output up to 2A/5V continuous and peak to 3A. What’s more ,reasonable size and light designing to make it more safe for flying.
- Supporting high RPM motors and can be promgrammed by the Beatles series programming card and transmitter .
57 in stock
Product Description :
Description : ESC size :27mm x 14mm x 5.
5mm (LxWxH).
Supporting input power : 2-4S Lipo/5-12NC.
BEC output :2A/5V, 3A peak.
Current continuous :15A Weight :6.
8g Connector : Motor side : 2.

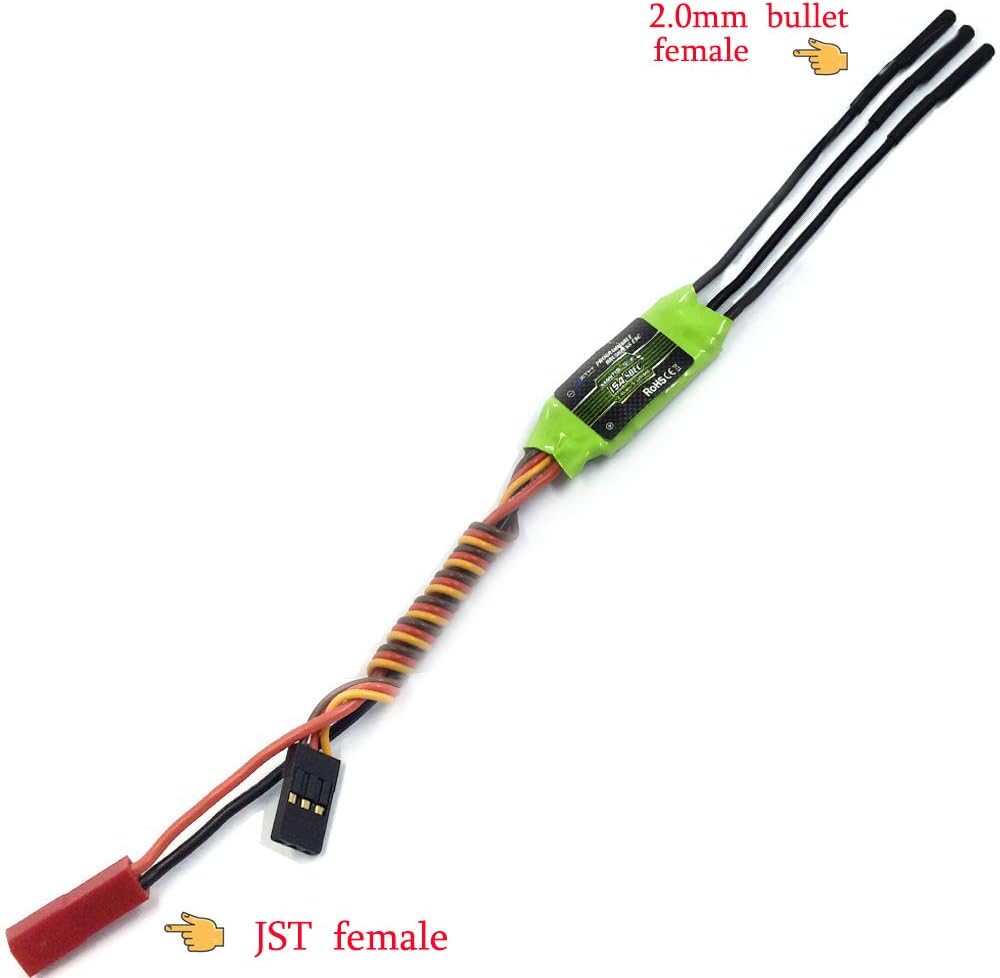

0mm female bullet connector Power side : JST (female case with male pin) Package includes : Mantis Slim 15A ESC x 1 User Manual x 1 Key Features : Specially designed for F3P airplane Super fast throttle response for the 3D flying Smaller and lighter designing ,helping for the high effciency flying 2.
0mm bullet connector for motor ,JST for power are soldered when out of factory Suppoert 2-4S Lipo,stonger SWITCH BEC up to 2A/5V continues,peak 2.
5V/5V for 5 seconds.
Note !! Please do make the throttle calibration for the first time using or changed the TX.
and HAWK HOBBY have 100% free warranty for this ESC.
Important information
Safety Information
Before using , please read the manual
Product Details :
| Detail | Value |
|---|---|
| Product Dimensions | 1.2 x 1 x 0.1 inches |
| Item Weight | 0.64 ounces |
| Country of Origin | China |
| Item model number | TY15124544 |
| Dimensions | 1.2 × 1 × 0.1 in |
|---|
