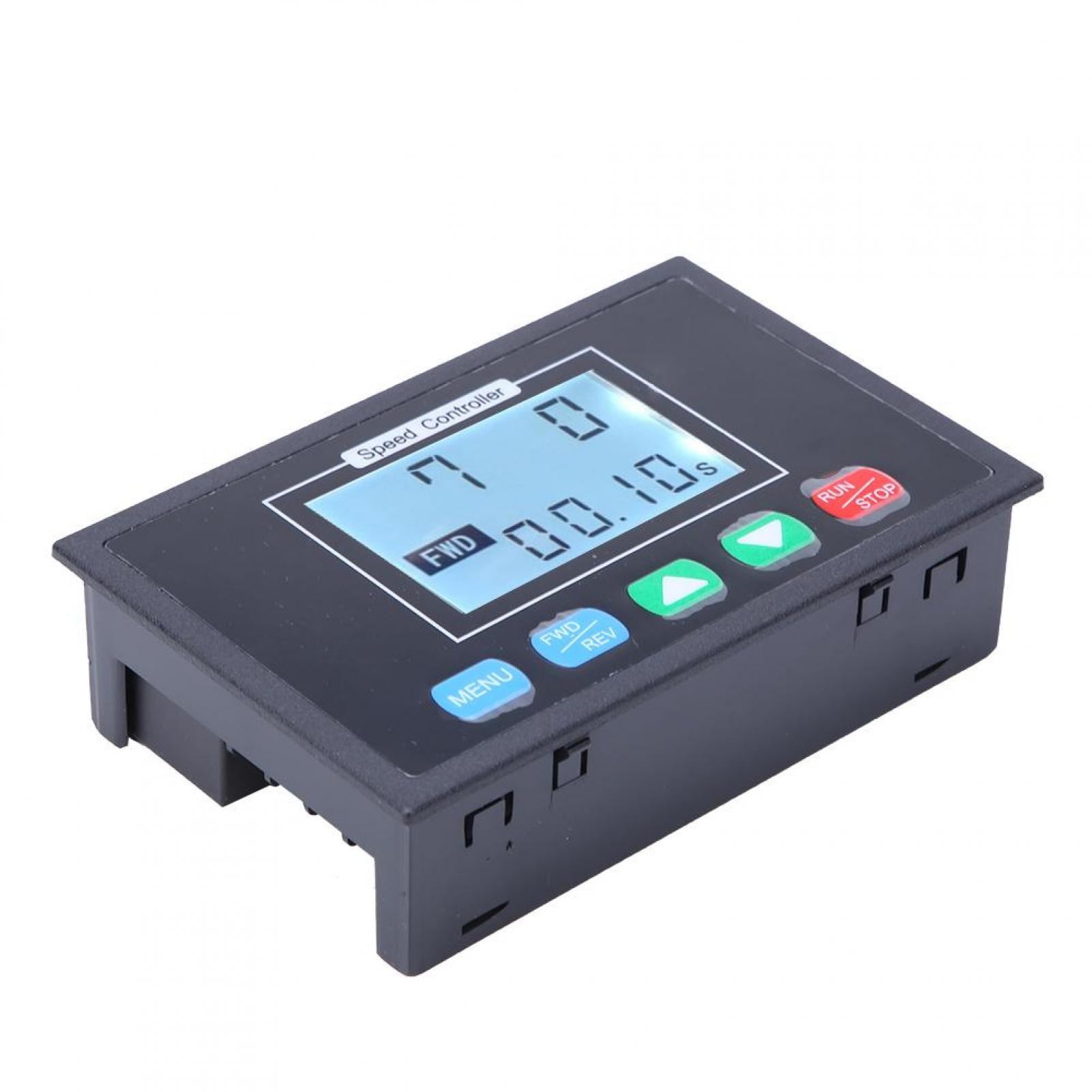

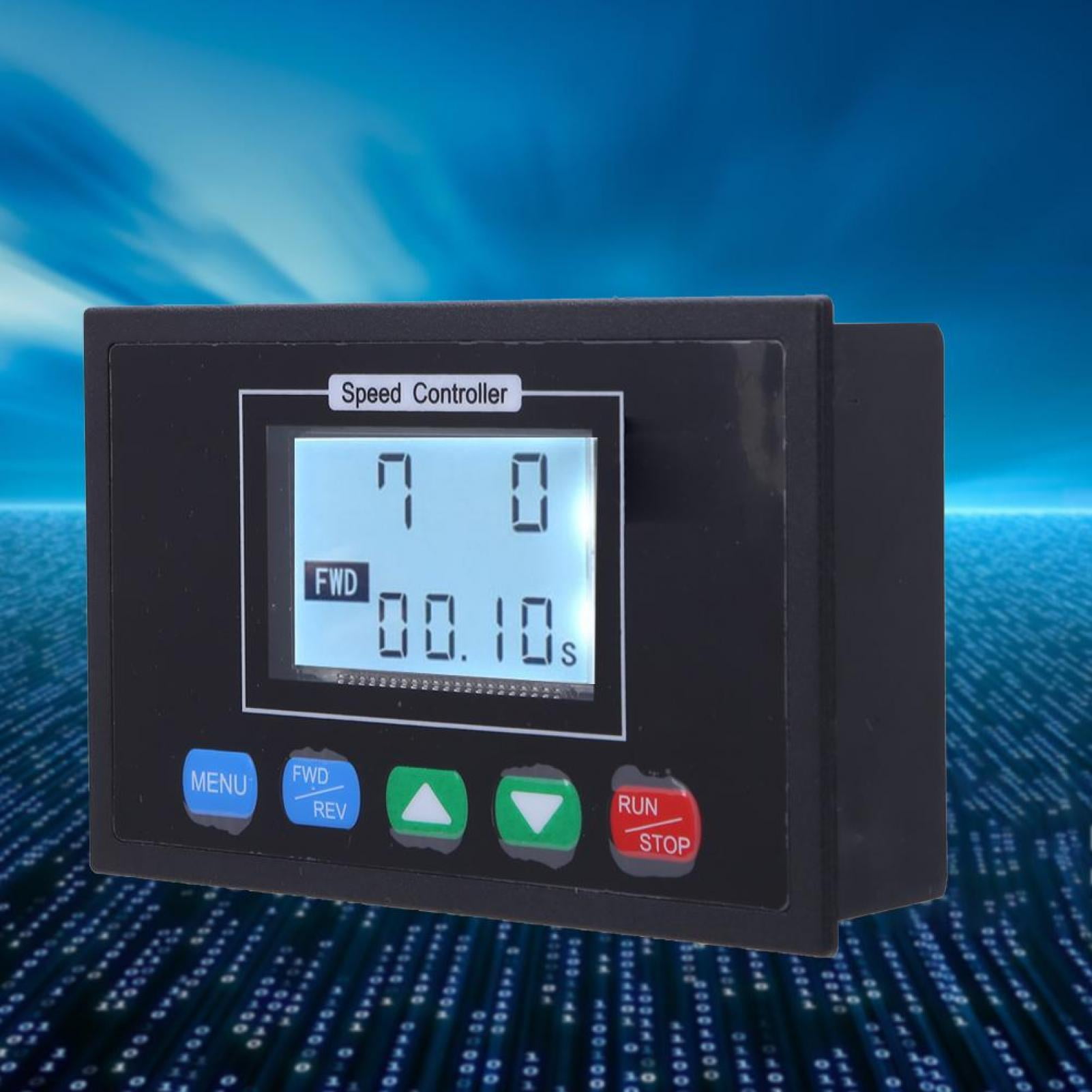

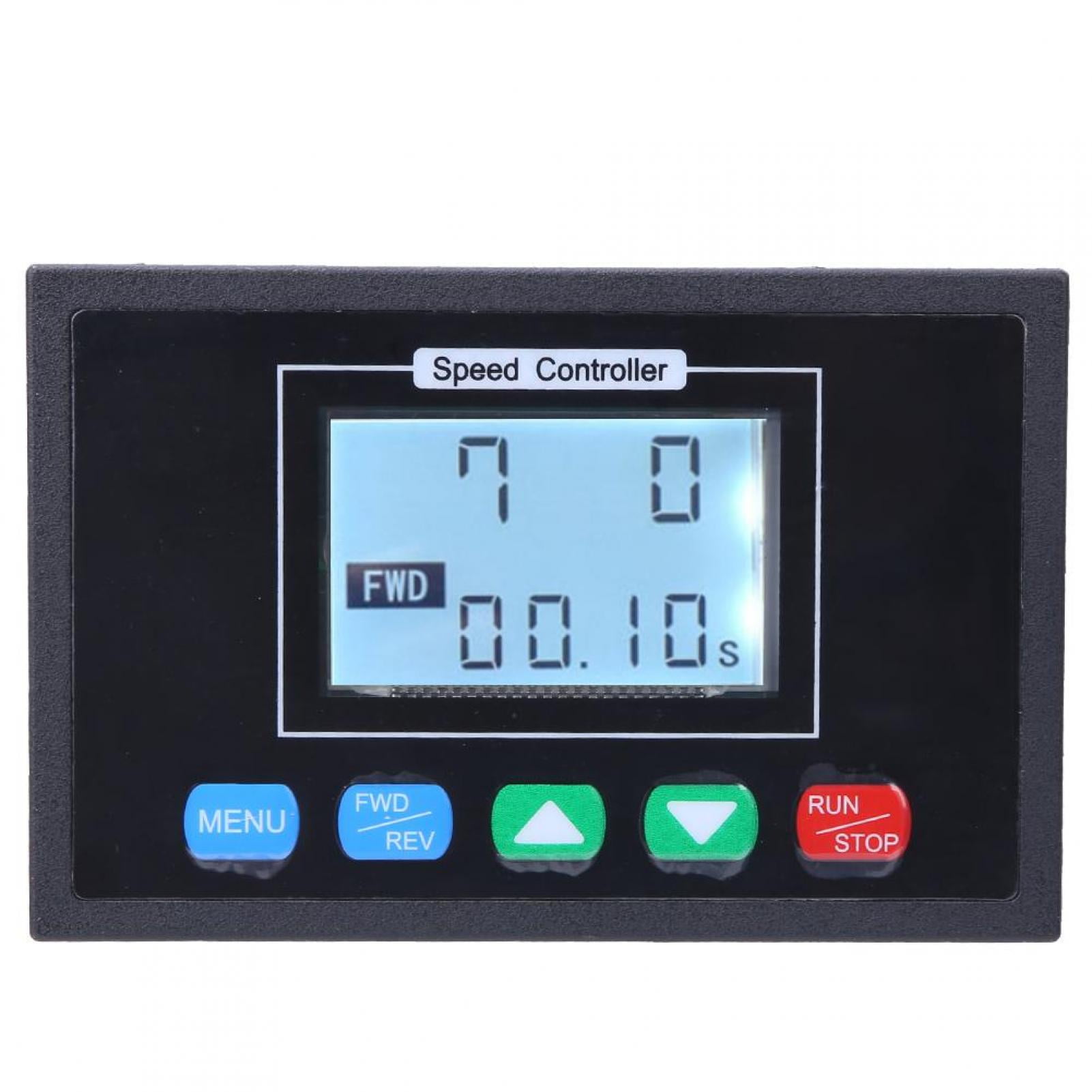

LHCER Motor Regulator,DC Motor Regulator Multi-Function Integrated Brush Motor Speed Controller DC10~55V,Motor Speed Controller

Item Type:DC Motor Driver
Input Voltage: DC10-55V
Output Voltage: Linear Under Load
Instantaneous Current: 60A
Continuous Current: Within 40A
Speed ​​Control Type: Current Adjustment
 Speed ​​Control Mode: Jogging + –
Speed ​​Range: 0 – 100%
Control Frequency: 15KHZ
Wiring Type: Fence Terminal Block
Support Motor: Brush Motor
Panel Opening: Length x Width 129 x 81.5mm / 5.08 x 3.21in

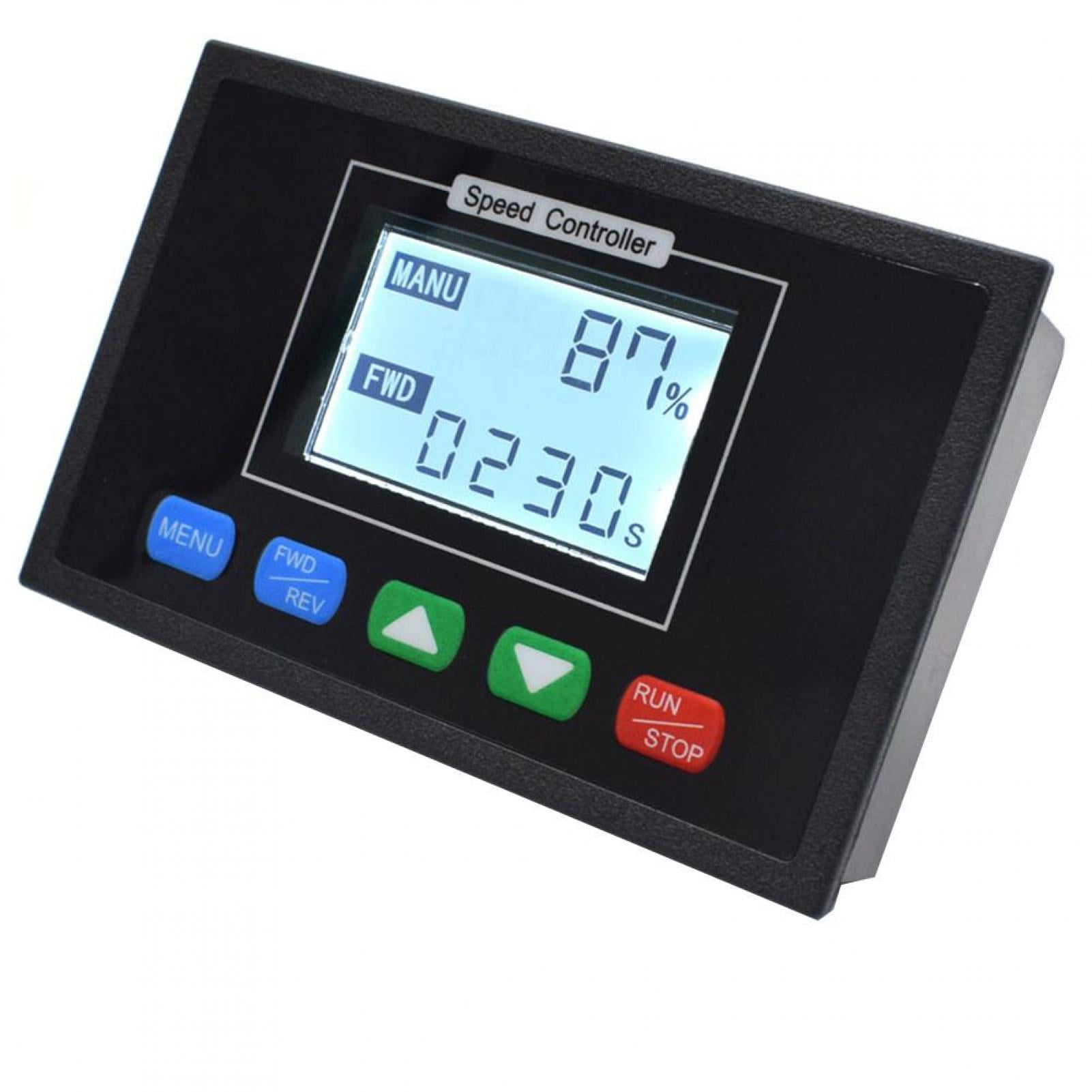

Speed ​​Digital Display: Percentage 0-100
Function settings:
The function settings of 0-1-2-3-4-5-6-7-8-9 are as follows:
Manual automatic mode selection. Function 0: 1 is manual mode 2 is automatic mode. The default is 1 manual mode.
Slow start time setting. Function 1: 000 – 100 Slow start to 100% speed time is adjustable between 0-10 seconds. The default is 1 second.
Slow stop time setting. Function 2: 000 – 100 The slow stop time is adjustable between 0-10 seconds. The default is 1 second.
Lower speed limit setting. Function 3: 000 – 080 The minimum speed is adjustable between 0-80% and is less than the maximum speed setting. The default is 0.
Speed ​​upper limit setting. Function 4: 000 – 100 The maximum speed is adjustable between 0-100% and is greater than the minimum speed setting. The default is 100%.
Acceleration and deceleration value setting. Function 5: 001 002 005 010 015 020 020 025 Each press of the plus or minus button speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25%.
Motor running total time setting Function 6: 1 second minimum – 99 hours 59 minutes 59 seconds maximum. The default is 99 hours 59 minutes 59 seconds.
The following function 7.8.9. is the time setting in the fully automatic mode.
Forward time setting Function 7: 1 second minimum – 99 hours maximum. Default is 10 seconds.
Stop time setting Function 8: 1 second minimum – 99 hours maximum. Default is 10 seconds.
Reverse time setting Function 9: 1 second minimum – 99 hours maximum. Default is 10 seconds.
