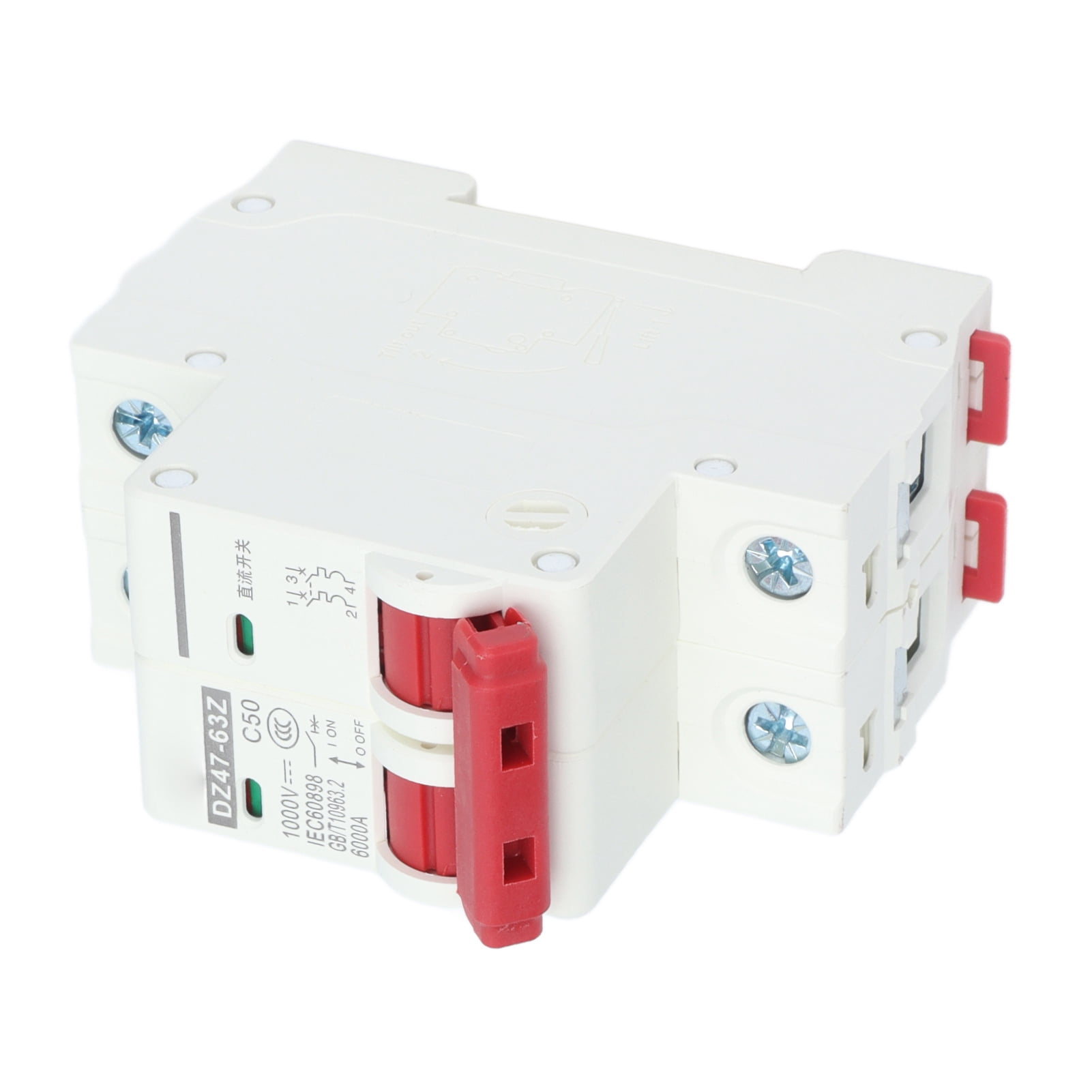

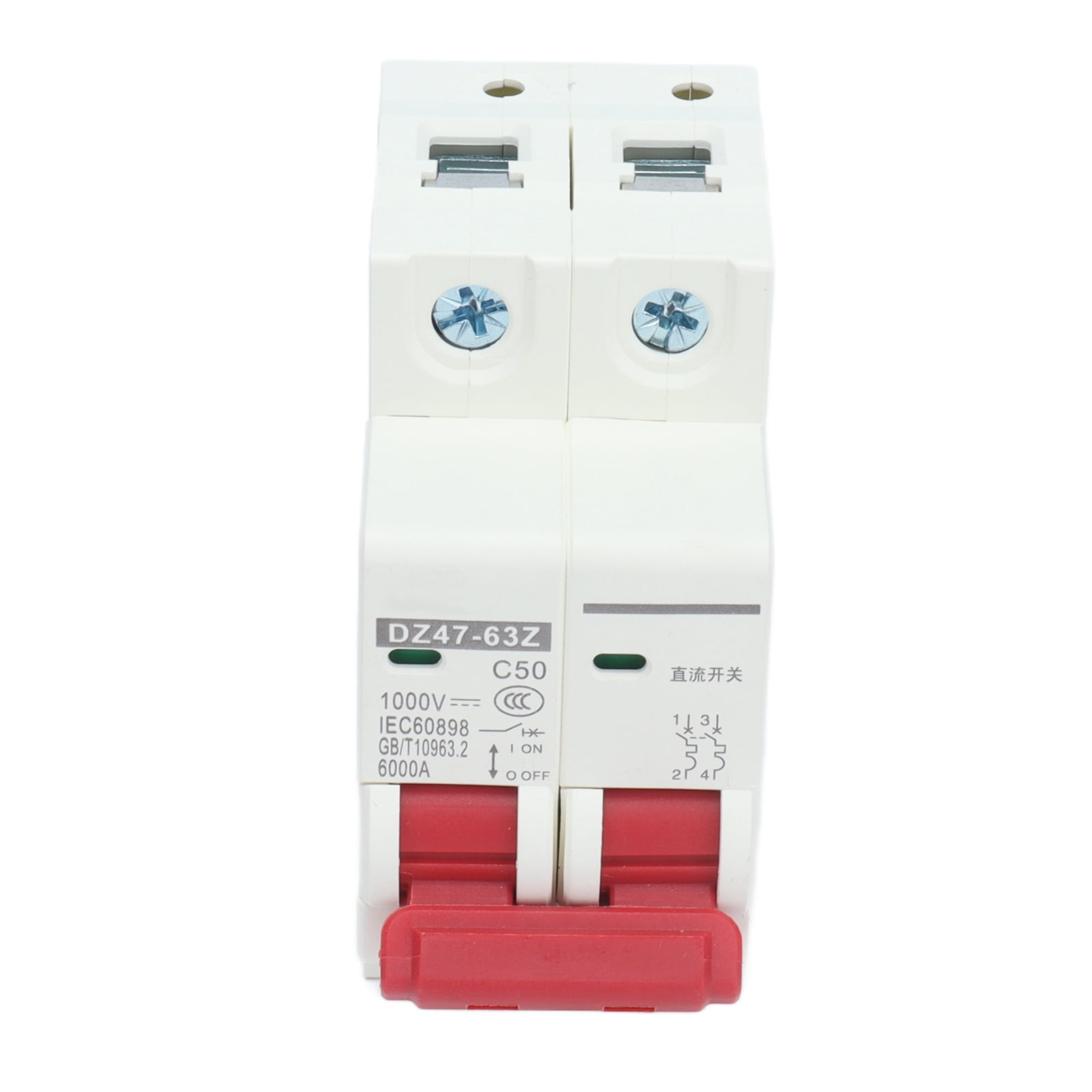

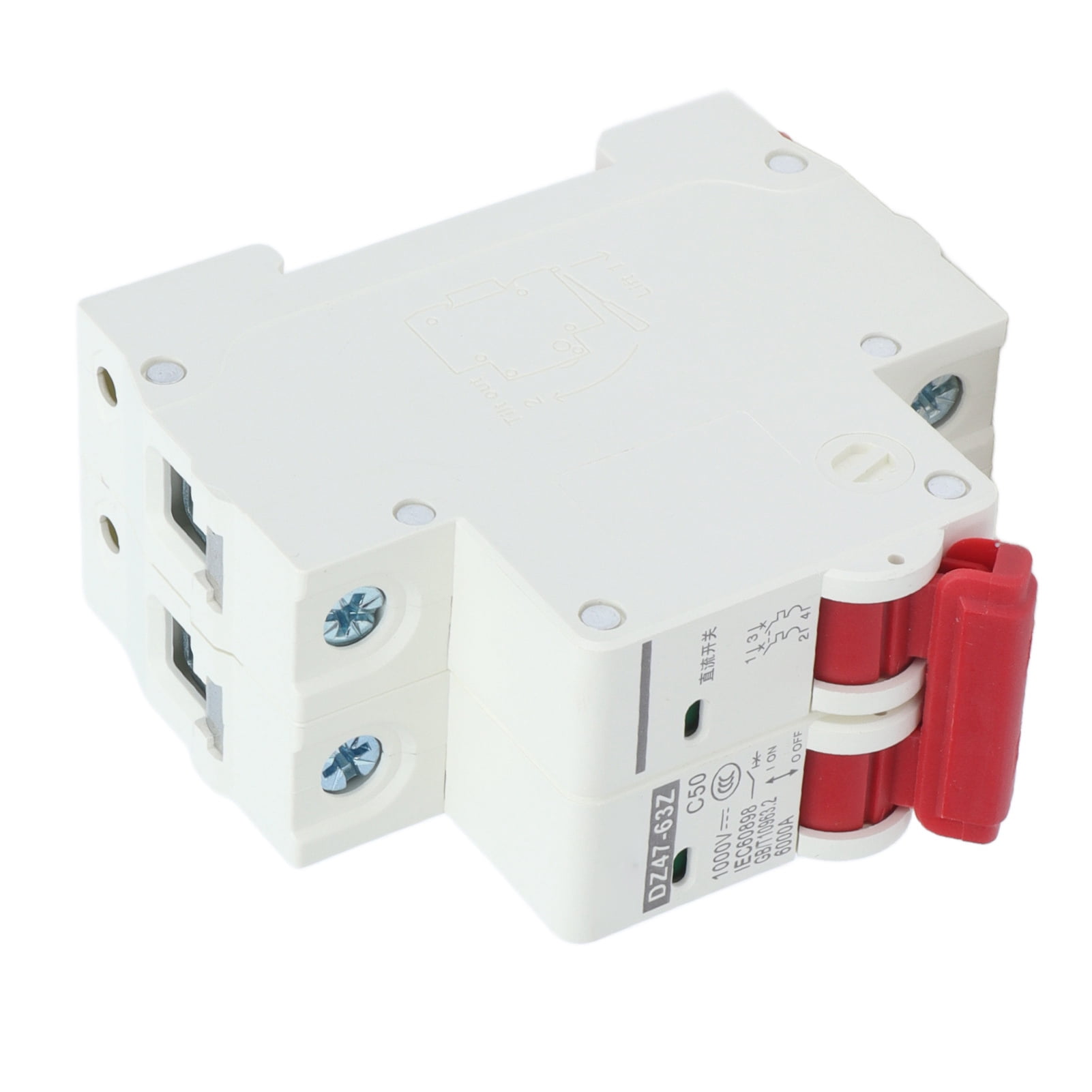

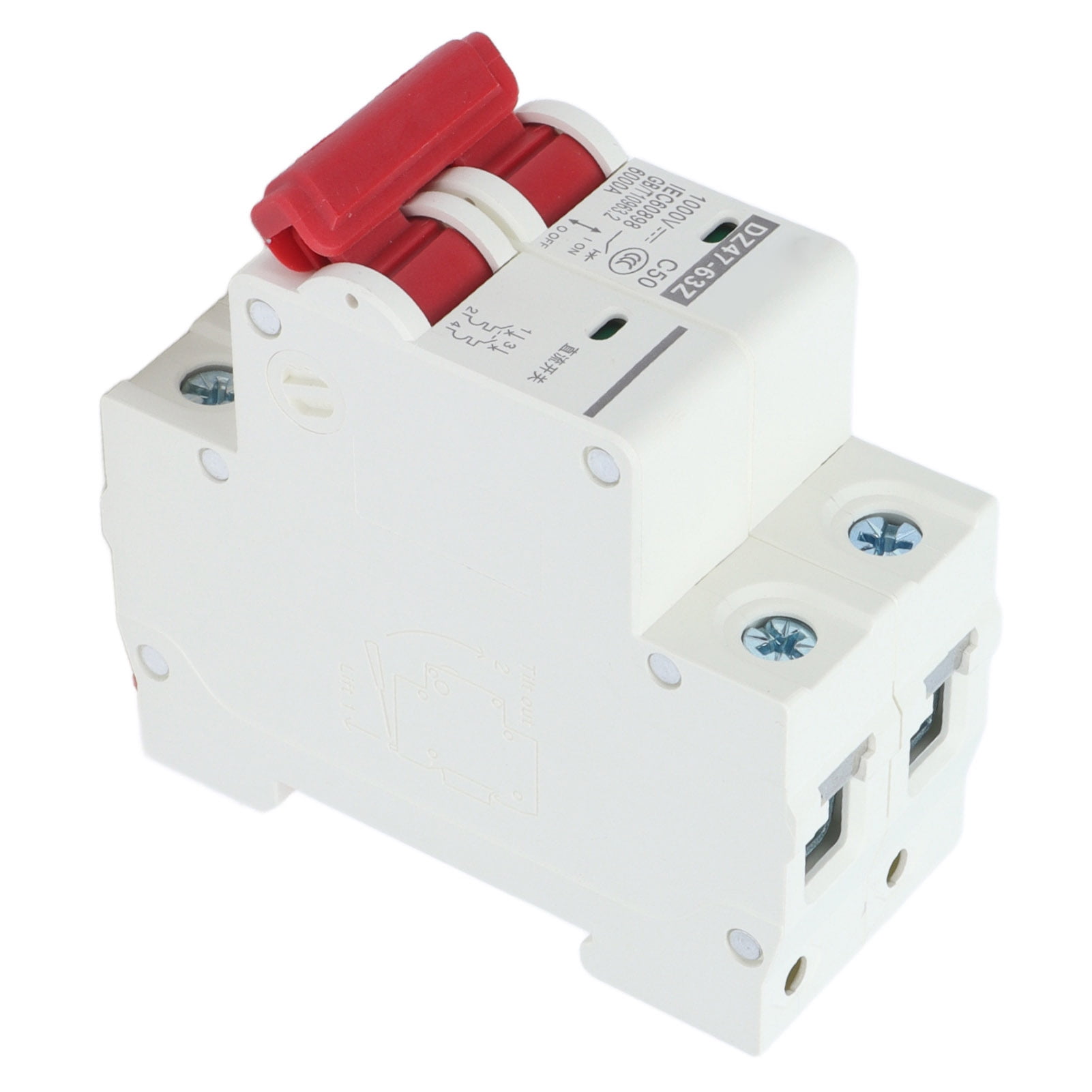

Miniature DC Circuit Breaker 50A 1000V 2 Pole Disconnect Switch for Solar Battery Panel PV System, Thermal Magnetic Trip, DIN Rail Mount

Feature:

1. Control And Isolation: Circuit breaker works for protecting power distribution facilities from overload and short circuit damage, and can also be used for control and isolation
2. Electromagnetic Trip System: The electromagnetic trip system can trip immediately when the circuit is short circuited, thereby effectively protecting the safety of the circuit
3. Auxiliary Arc Extinguishing: DC arc extinguishing is more difficult than AC, this DC circuit breaker has an auxiliary arc extinguishing magnetic system, which is more fast
4. For DC Systems: Suitable for DC power systems, ship power systems, solar photovoltaic systems or other DC systems, with excellent performance
5. 35mm DIN Rail Installation: Circuit breaker come with modular structure, adopt screw clamps and 35mm DIN rail installation

Specification:

Item Type: DC Miniature Circuit Breaker
Model: DZ47-63Z
Material: PA66
Rated Current: 50A
Rated Voltage: DC 1000V
Rated Ultimate Short Circuit Breaking Capacity(home Icn): 6000A
Uses: Solar photovoltaic, electric motorcycle, electric car

Package List:

1 x DC Miniature Circuit Breaker

1. Open the package and take out the product

2. Install the circuit breaker in the distribution box

3. Install wires on the circuit breaker and use
