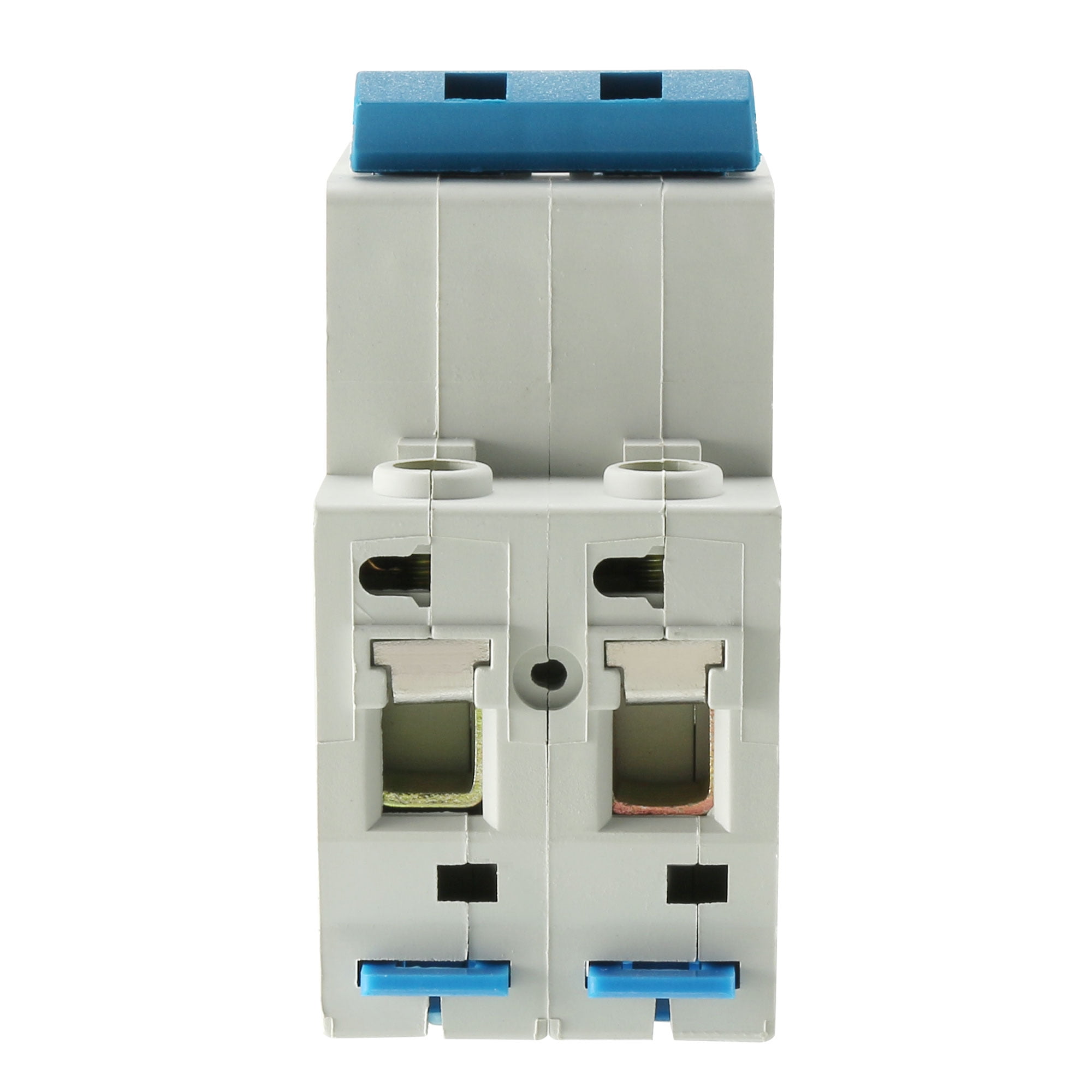

2 Poles 6A 400V Low-voltage Miniature Circuit Breaker DZ47-63 C6

Descriptions:
This is a great circuit breaker used to protect a low-voltage electrical system from damage caused by excess current resulting from an overload or short circuit.
Fast trip to ensure reliable operation of the load and prolong the life of electrical circuit breakers. It can also work as on-off switch for load circuits.
Modular structure, can be easily installed on the DIN standard guide rail in distribution box, the installation more convenient. Suitable for isolation in accordance with industrial standards: IEC EC60898-1/GB10963.1.

Specifications:
Model: DZ47-63 C6
Rated Current: 6A
Rated Voltage: 400V
Rated Circuit Breaking Capacity: 4000A
Number of Pole:2
Switch Type:ON+OFF,Latching
Mechanical Life: 20,000 times
Electrical Life: 6,000 times
Overall Size:79 x 36 x 74mm/3.11” x 1.42” x 2.91”(L x W x H)
Rail Mounting : 35mm DIN Rail
Main Color:White, Blue
Material :Plastic, Electric Components

Package Content :
1 x Miniature Circuit Breaker

Model: DZ47-63 C6 ; Rated Current: 6A
Rated Voltage: 400V ; Rated Circuit Breaking Capacity: 4000A
Overall Size:79 x 36 x 74mm/3.11” x 1.42” x 2.91”(L x W x H)
