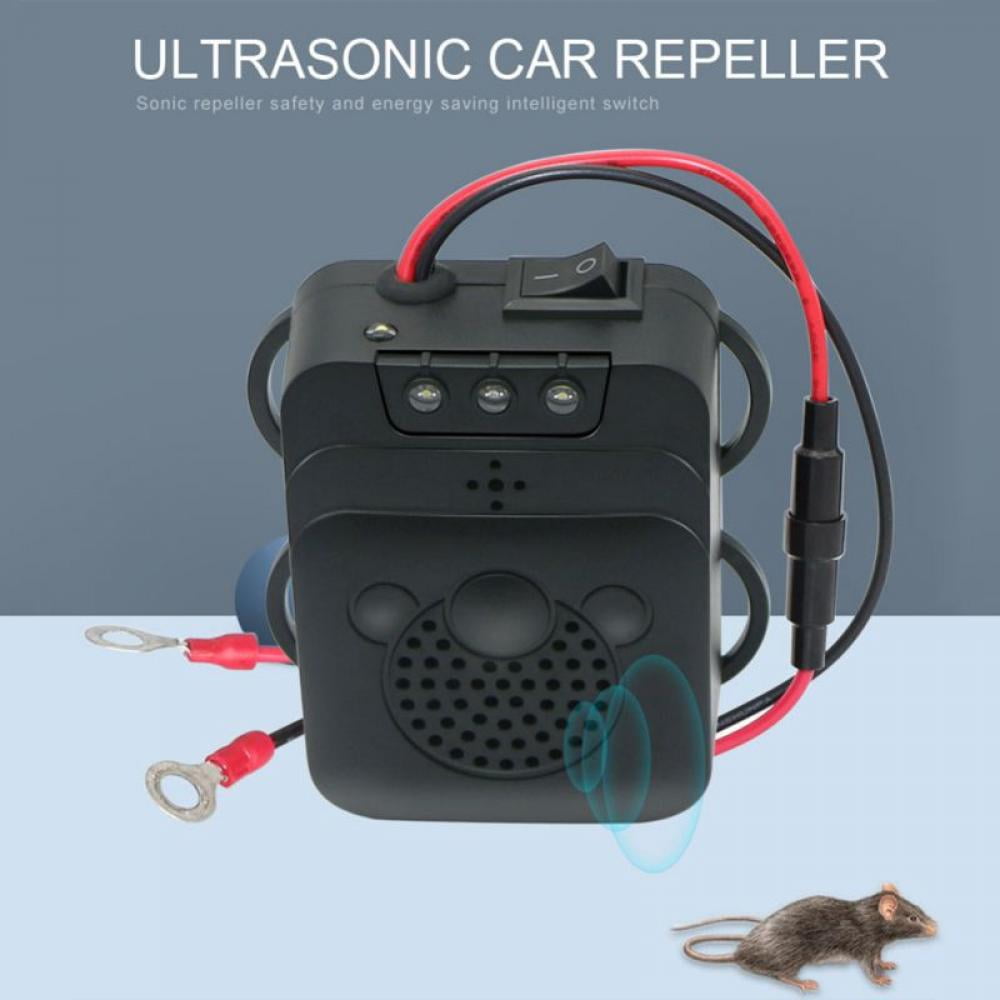

Ultrasonic Mouse Repellent Mouse Repeller Under Hood Animal Repeller For Car

Instruction Manual

Command:

Thank you for purchasing this product. Please read and understand these instructions, and keep this manual for future reference. The product uses modern and the latest biological concepts and scientific methods to generate specific ultrasonic waves to stimulate the nervous system and auditory system of pests such as mice, causing discomfort and escape from the covered area. And a strong flash may also scare them away. The ultrasonic waves produced by this product are constantly changing, avoiding the resistance and adaptability of pests (such as mice). Ultrasound is a sound that cannot be heard by human ears and will not cause adverse effects on people. Therefore, it can create a high-quality living space without mice.

Product parameters:

1. Working voltage: DC12V.

2. Current: working 40mA, standby 5mA.

3. Frequency: 12kHz-25kHz.

4. Induction method: vibration induction.

5. Floor area: 40 square meters.

Product introduction:

6. The white LED light flashes. The white LED flashes inside the car has a more shocking effect.

7. Vibration detection. This product has a vibration detection function. When the car is started, it will drive the product to vibrate. When the product detects this situation, it will stop working. At this time, rats and other pests will not harm the car and reduce power consumption. When the car stops and the vibration stops, the product thinks that the person has left, and automatically turns on the working mode after 5 minutes to replace people on duty and protect the car from pests such as mice.

Installation method:

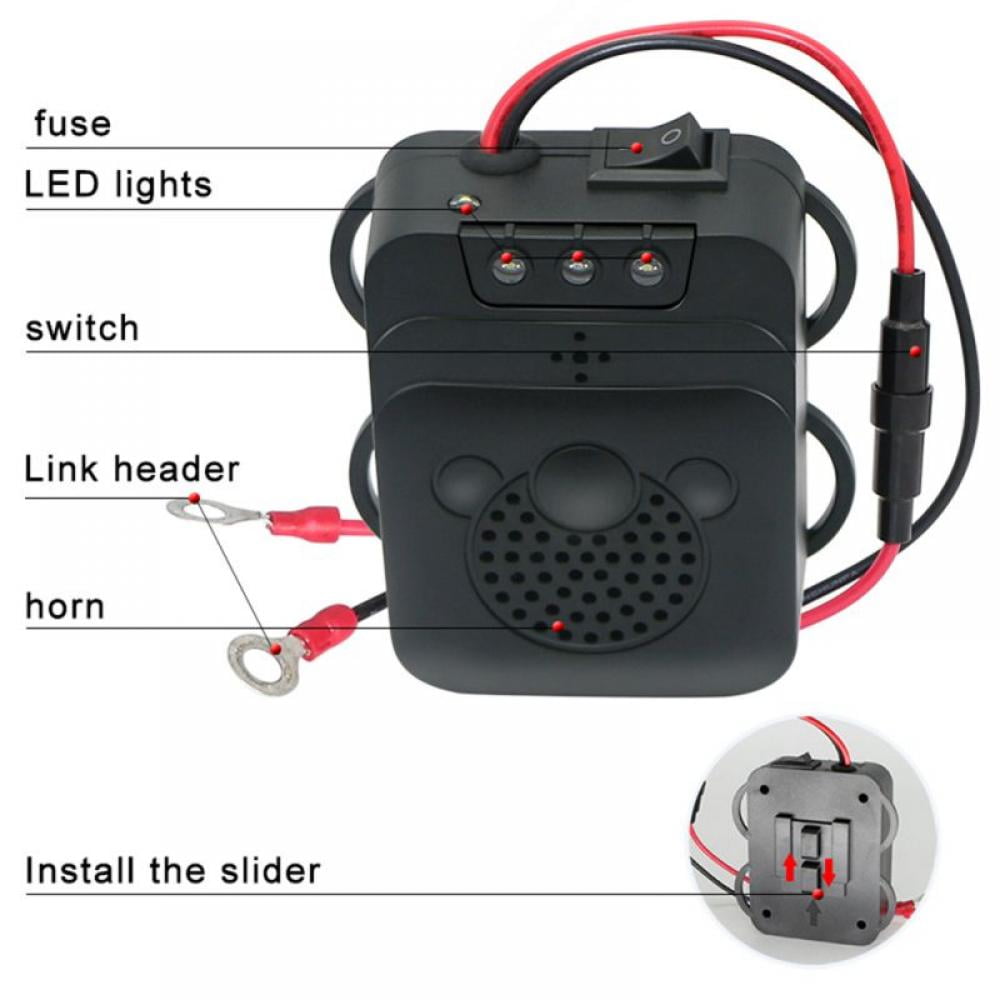

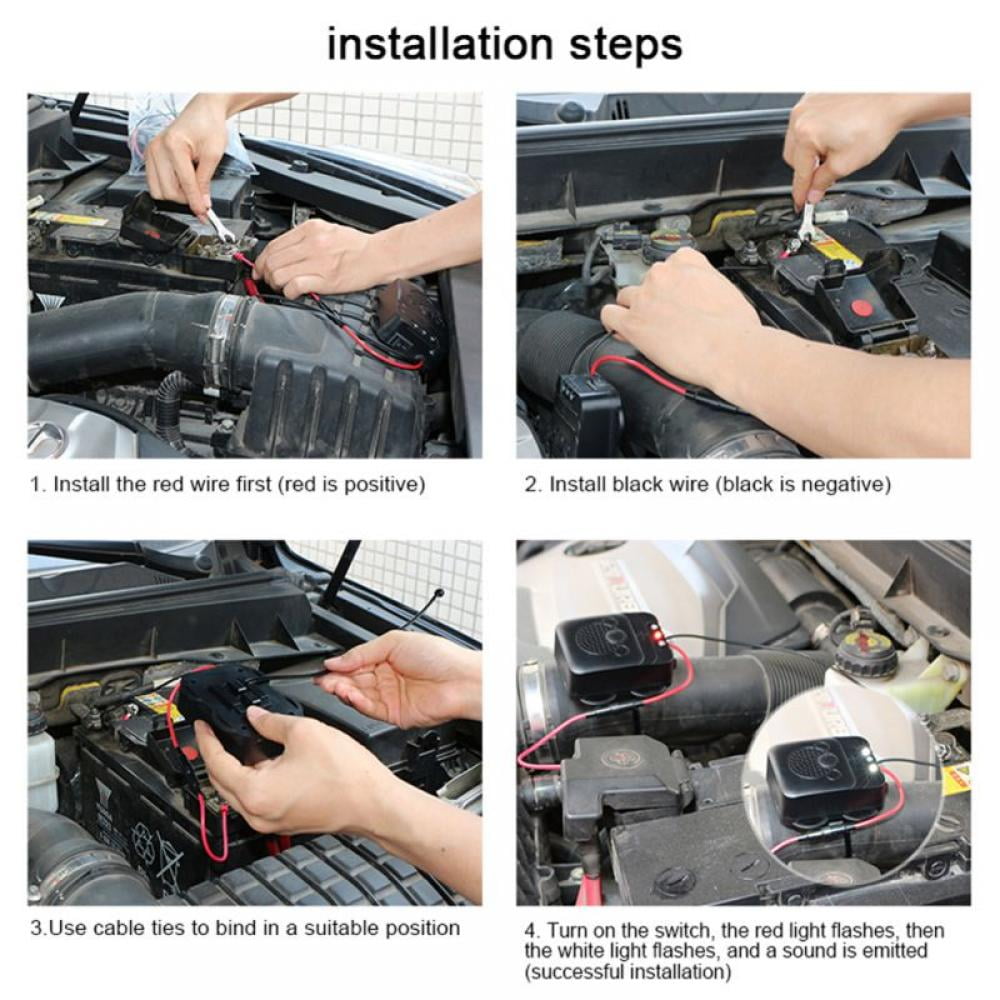

Open the engine compartment cover of the car, fix the product in the appropriate position in the cab, then connect one end of the red wire and fuse to the positive pole of the car battery, and one end of the black wire to the negative pole.

When the switch button is turned on, the product enters the self-check mode and then enters the working mode.

Note: The fuse of this product has been connected to the positive pole of the power cord. If there is a problem with the product, please consider replacing the fuse first.

Package description: 1pcs mouse repeller

1 fixator

2 straps

1 manual

• 1. The product uses 12V conventional car battery for power supply, no need to use another power supply, easy to install and use.
• 2. Reverse connection protection function. Prevent the artificial connection of the circuit and damage the product.
• 3. Product power-on self-check function. When it is installed for the first time and the switch is turned on, the product enters the automatic detection function to detect the function of each component. Red light, white light, and high-frequency transmitter are detected in sequence.
• 4. Battery low voltage detection function. The product will detect the battery voltage during operation. If the battery voltage is too low (less than 9.2V), the product will sound an alarm to indicate that the voltage is too low and will no longer work at this time to prevent battery power loss and protect the battery. When the battery voltage is restored, the product will automatically stop the alarm and enter the standby state.

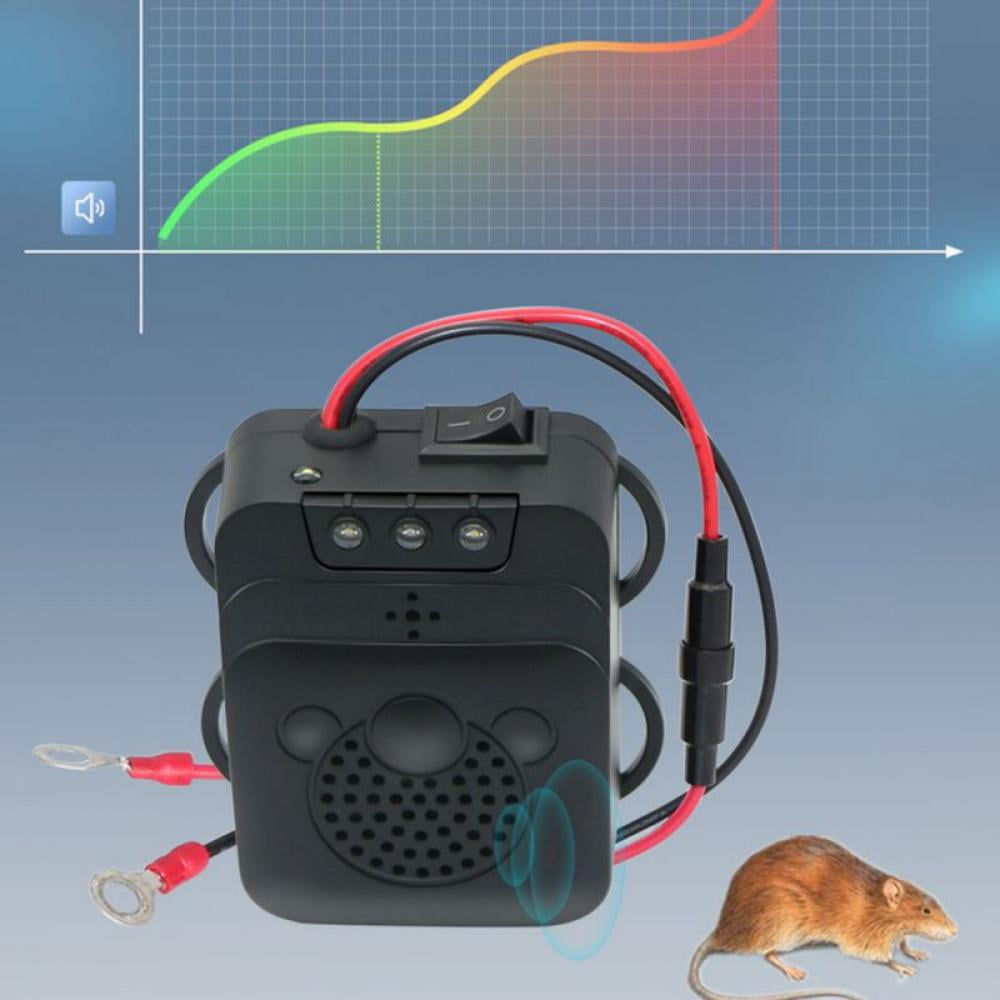

• 5. Frequency conversion output. The product uses a sweep frequency output and a fixed frequency output, and the output time is also changed at intervals, which reduces the hearing resistance of mice and makes it easier to function.
