ZOSI HD 1080P 4 in 1 TVI/CVI/AHD/CVBS Security Camera Outdoor Weatherproof Day Night 24PCS IR LEDs 65ft(20m) IR Distance Aluminum Metal Housing

This 4-in-1 professional bullet security camera compatible with TVI, AHD, CVI and Analog DVRs. Equipped with 1/3" 1.0MP CMOS image sensor and advanced processing technology, it offers you 1080p clear and bright image.

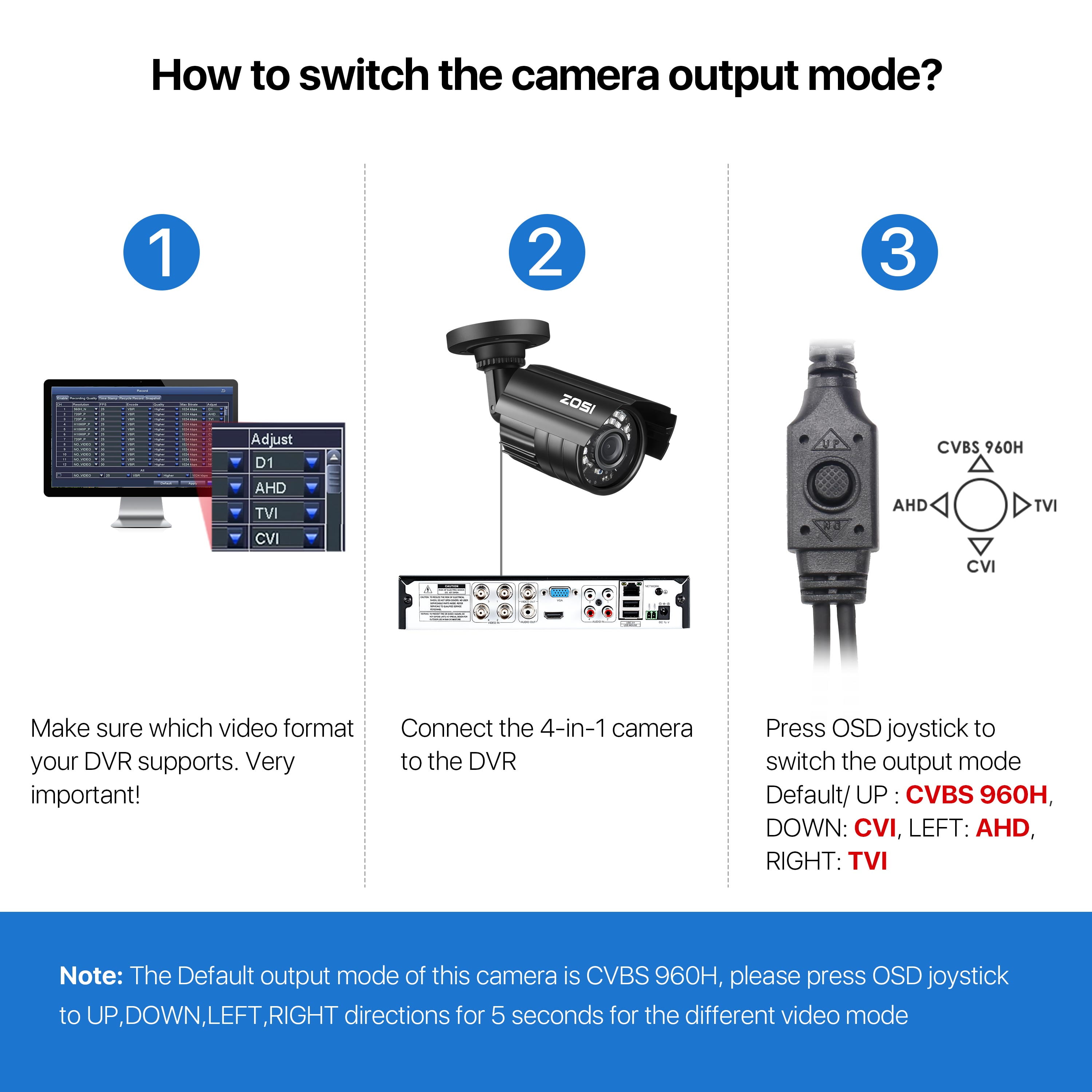

This camera has a built-in OSD menu that can change 4 different video outputs TVI/AHD/ CVI/CVBS(960H). Please first confirm your DVR type and then adjust the camera to corresponding video output.

Operation Mode:
Switch to AHD: Press Leftward for 5 Seconds
Switch to TVI: Press Rightward for 5 Seconds
Switch to CVBS: Press Upward for 5 Seconds
Switch to CVI: Press Downward for 5 Seconds

Specification
Image Sensor: 1/3〞CMOS, CMOS with IR-Cut
Active Pixels: 1920(H)×1080(V)
Resolution: 1080P
Singal mode: TVI / AHD / CVI / CVBS 960H
Lens: 3.6mm
IR LEDs Amount: 24pcs, 5mm LEDs
IR Distance: up to 65ft (20m)
Power Supply: 12V 1A

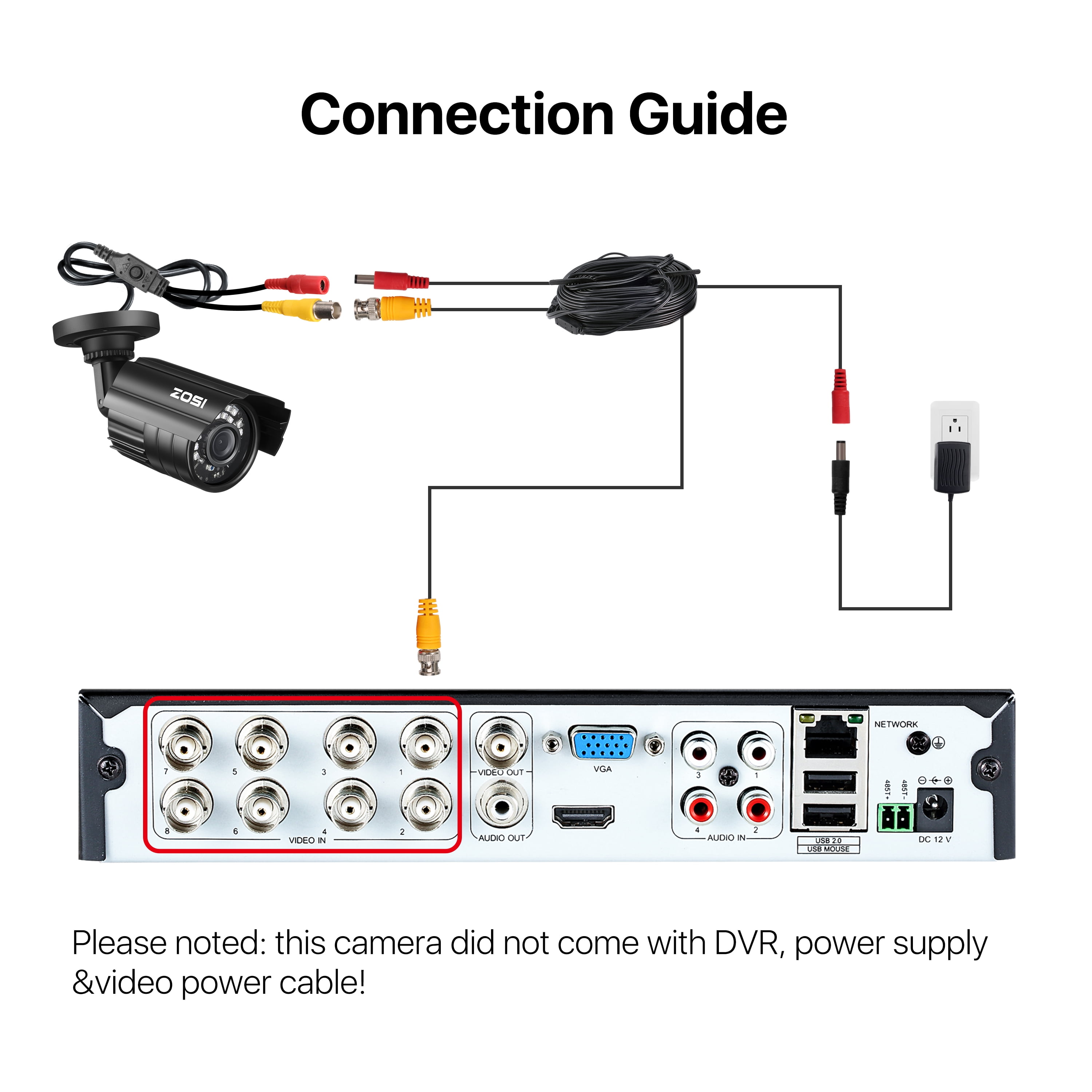

Please noted: It only includes the camera, no power supply or video cord.

Troubleshooting
Q: Video Loss appears where the image from my camera should be displaying on my DVR?
A: 1.Check the extension cable (power and video) is securely connected to the camera.
2.Check the video output from the camera is securely connected to a video input channel on the DVR.
3.Check the power from the camera is securely connected to a power supply.
4. The camera mode do not match your DVR.there is 2 ways to setup .
(1) Press OSD Joystick “DOWN” 5 seconds,if still no picture come, try to press “LEFT” “RIGHT””UP” for 5 second, till the signal matching your DVR.
(2) Make sure the signal of your DVR, Use OSD Joystick to change the mode of the camera according to your DVRs video Mode.
