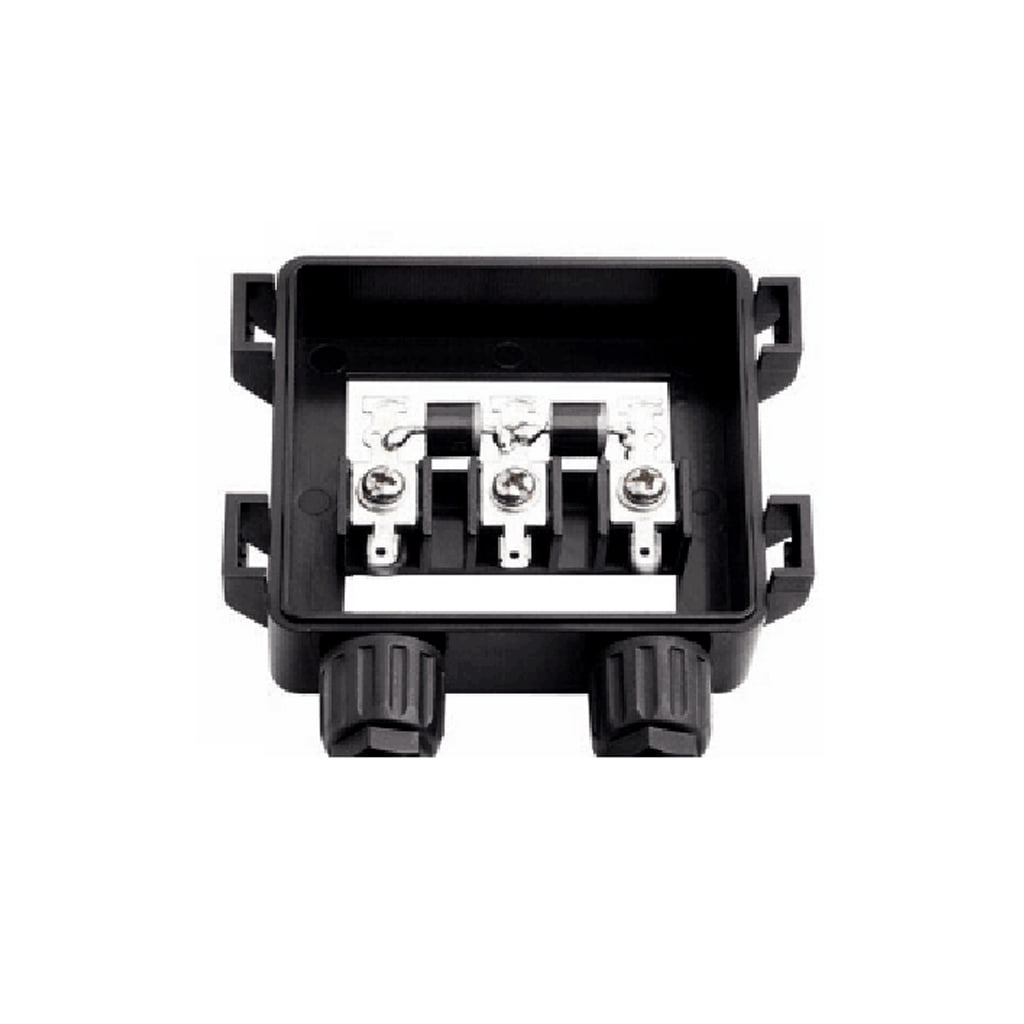

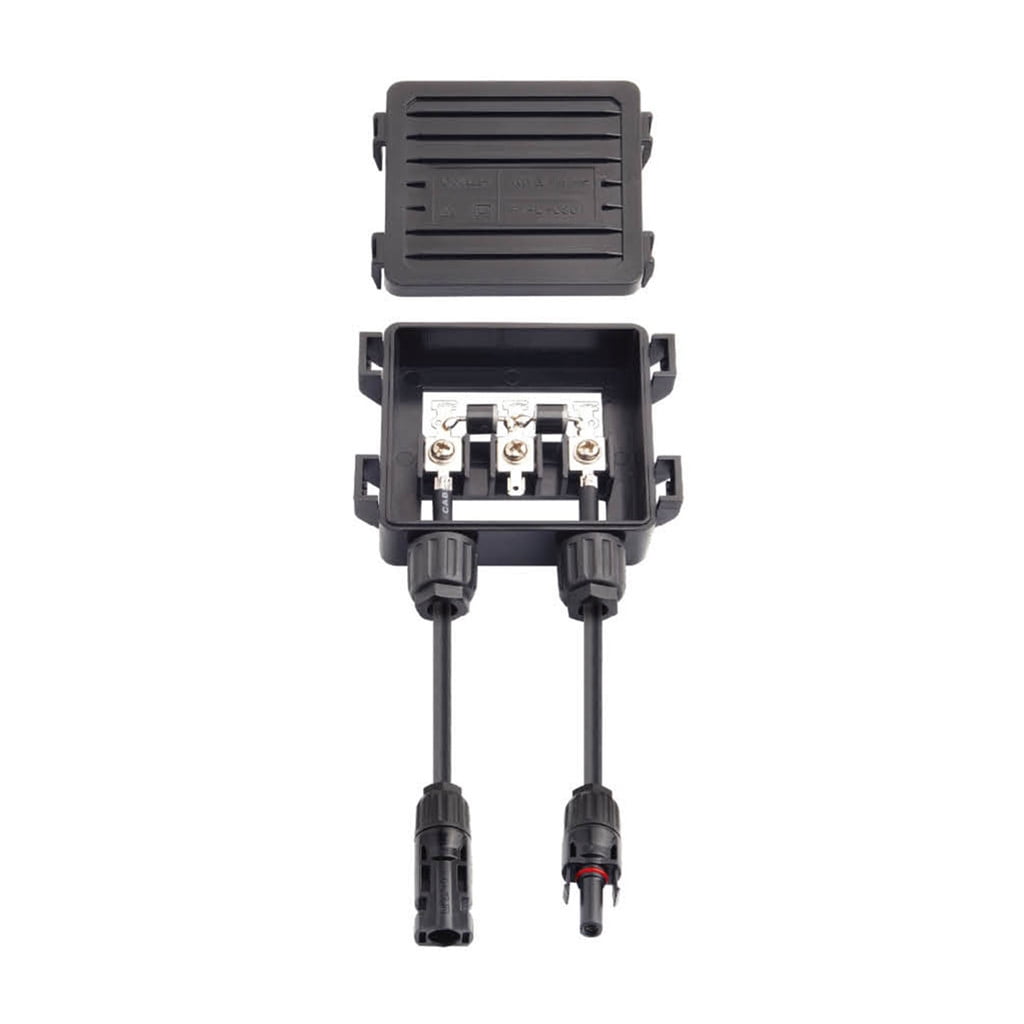

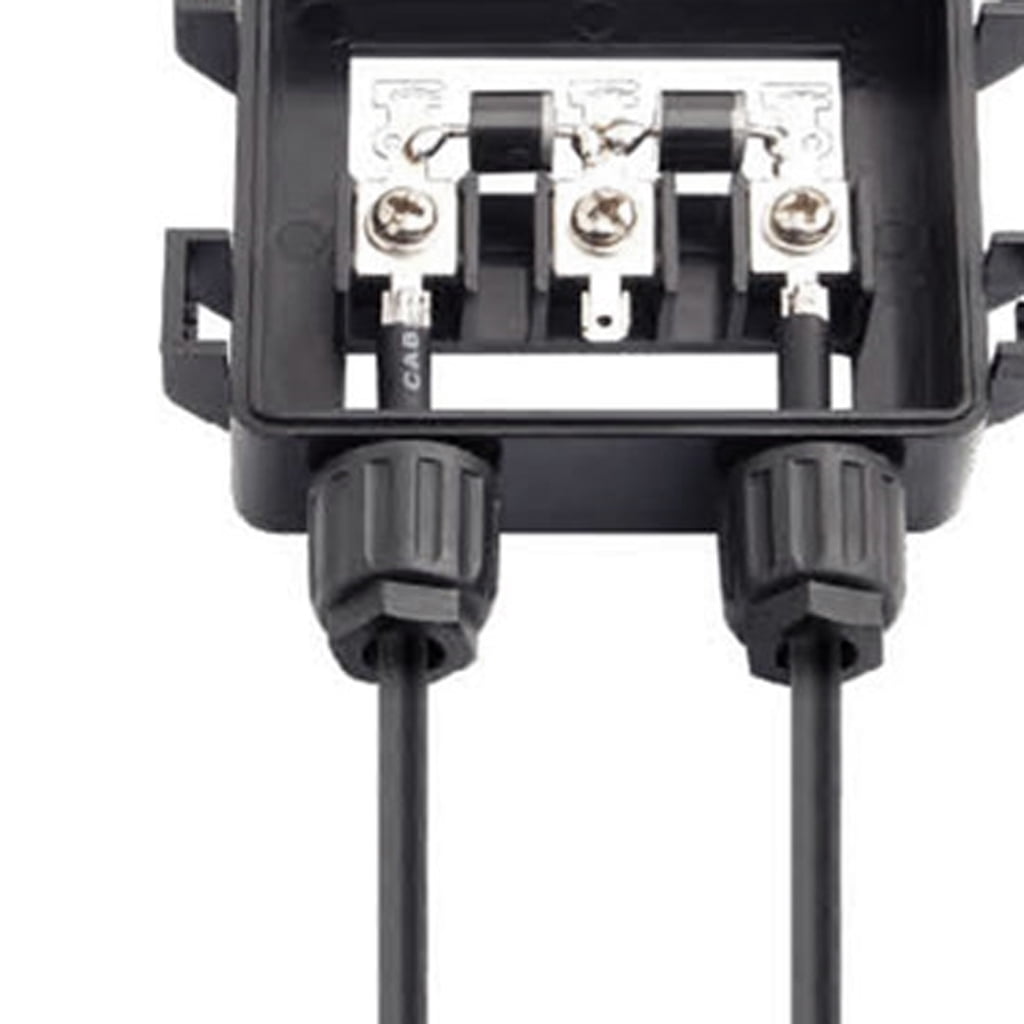

6pcs Connectivity PV Solar Junction Box with 2 Diodes for 50w-170w 6A Solar Panel

Description:

100% brand-new and high-quality.
With the capacity of anti-aging and UV resistant, provide longer life span under outdoor bad condition.
Top quality units with firm "clip together" seal for unrivalled durability.
Provides users with a safe, fast and reliable connectivity solution.
Easy to assembly, just clip and go!

Specification:

Material: PPO
Color: Black

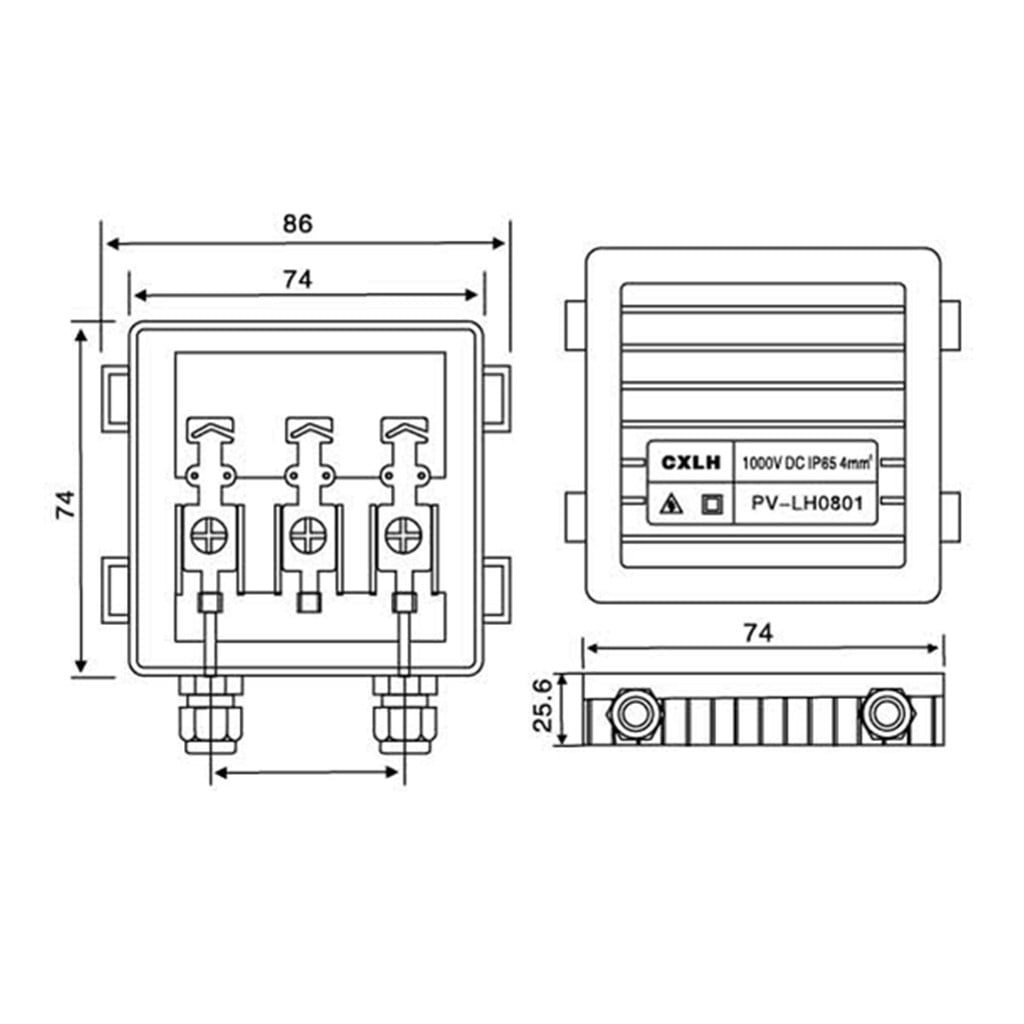

Size:2.91X2.91X0.98 " / 7.4X7.4X 2.5 cm (approx.)
Rated Voltage: DC 1000V
Rated Current: 6A
Power Capacity: 50-170 W
Safety level: Ⅱ
Diodes Details: 2 Pcs 10A10
Temperature Range: -40 degree-+85 degree
Protection Degree: IP65
Flame Class: UL94-VO

Package Includes:

6 X Solar Junction Box (cable is not included)

Note:

Since the size above is measured by hand, the size you received of the actual item could be slightly different from the the size above.
A solar junction box ONLY, cable is not included.
