EL-50448 TPMS Reset Tool Relearn Tool Auto Tire Pressure Sensor for GM Vehicles

Product Description:

EL-50448 TPMS Reset Tool is the specified diagnostic tools which can read the tire pressure sensor for models in & after 2012.
– EL-50448 TPMS Reset Tool works on all General Motors (Buick, Cadillac, Chevrolet, GMC) products manufactured for the North American market.
– It won’t work if you’ve purchased aftermarket sensors that are the wrong frequency.

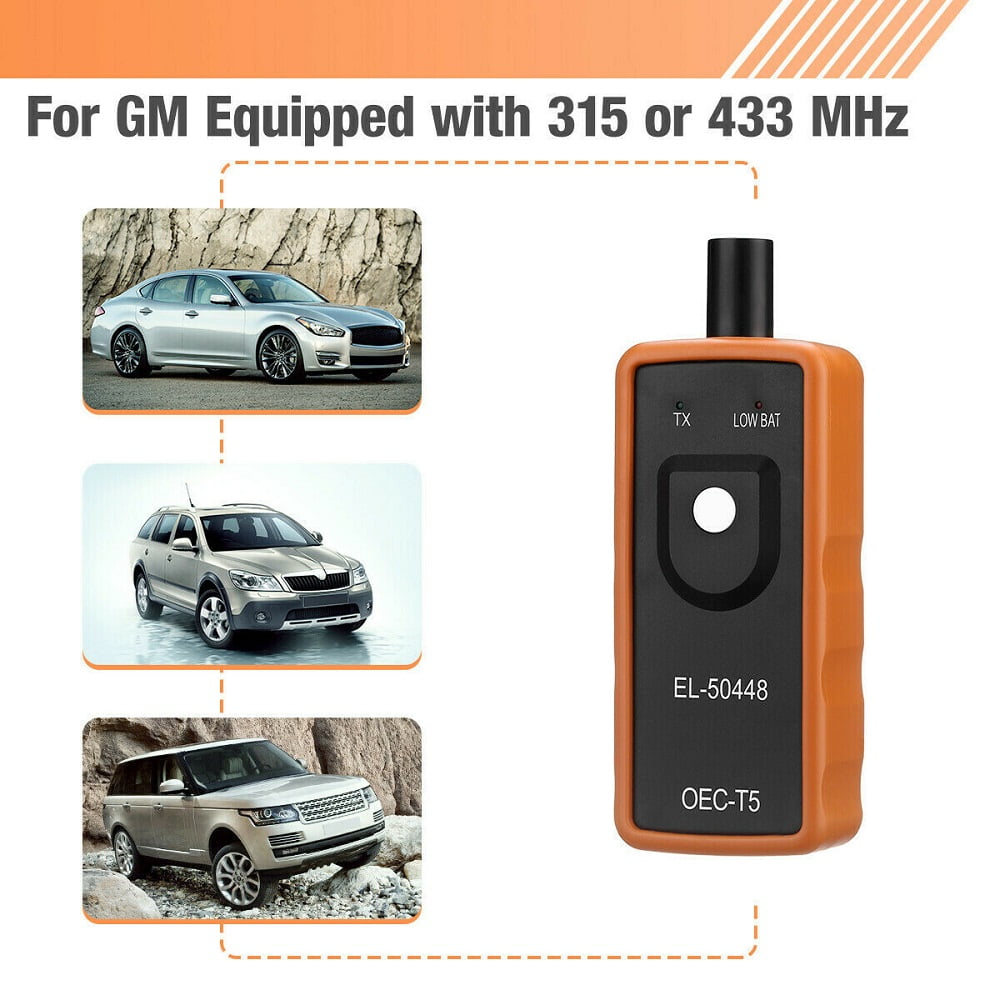

– EL50448 fit for G.M most kind of vehicles, equipped with a 315 or 433 MHz Tire Pressure Monitoring (TPM) system.
– This re-learn procedure can be performed by using special tool EL-50448.

How to set your car in TPMS relearn mode:

1. Make the gear in P position.
2. Use cruise to choose TPMS re-learn mode in the dashboard settings.
3. Horn will ring twice and the TPMS indicator flashes, then the learning mode has been successfully entered. (If
equipped, the message center will display the front left (LF) tire)
4. Before tire pressure monitoring system works normally properly, the body control module will record ID
information of each position in the tire pressure sensor.

How to use EL-50448 relearn tool:

Step 1—Set the car into TPMS re-learn mode. (Car will horn twice)
Step 2—Start from left-front tire, hold unit next to Valve and Press White Button, the horn bleeps once.
Step 3—Follow this order to reset TPMS one by one: front-right, rear-right, rear-left tires.
After all sensors reset, the car horns twice means TPMS re-learn finished.

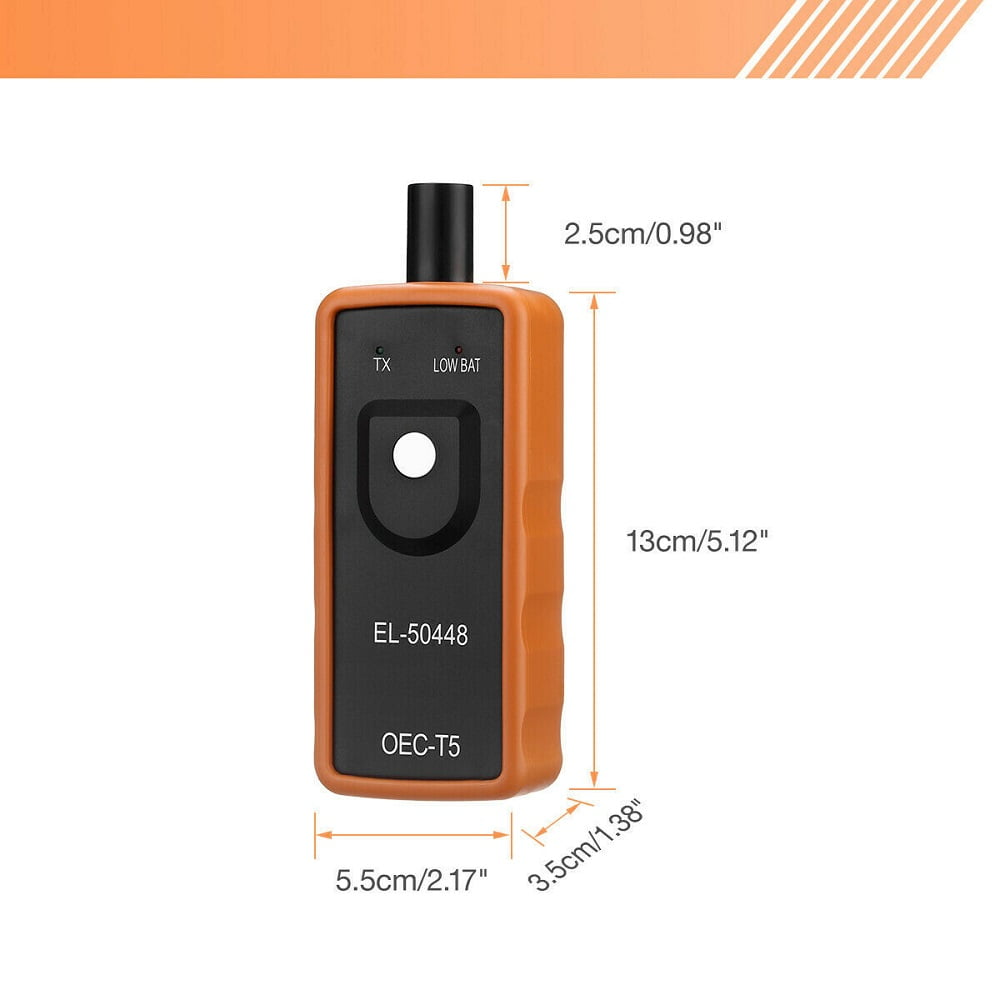

Product Specification:

1.Type: TPMS Reset Tool for GM
2.Material Type: High quality plastic & metal
3.Hardware Version: OEC-T5
4.Software Version: EL-50448
5.OBD interface: OBDII, CAN, EOBD
6.Supported system: TPMS
7.Color: Orange and Black
8.Certification: CE ROHS FCC
