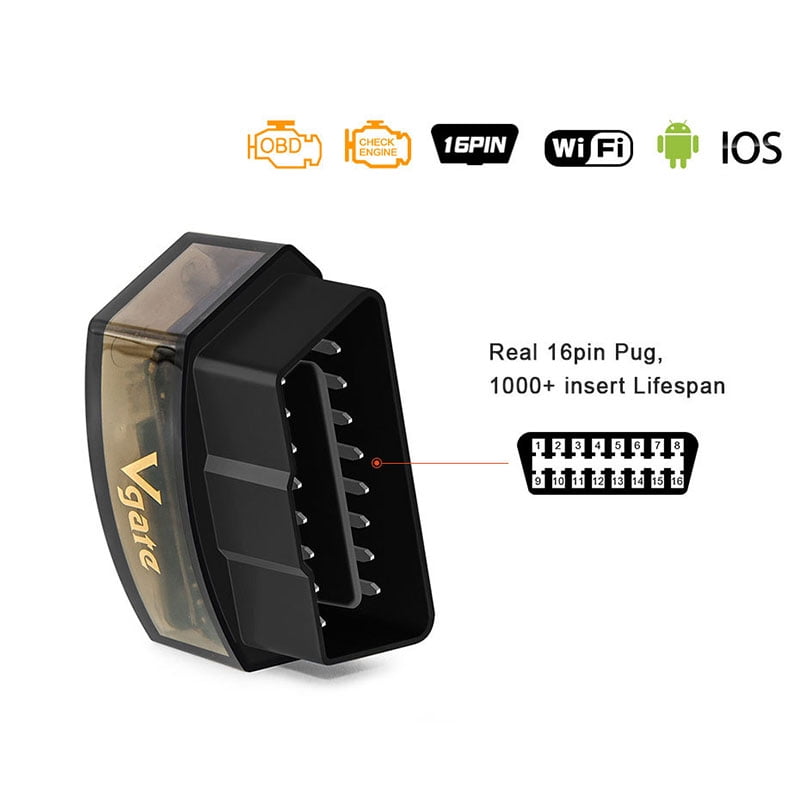

Vgate iCar Pro Wifi ELM327 V2.1 OBD2 Scanner Scan Tools OBDII Scanner Diagnostic Tool Code Reader

Features:

• CLEAR CHECK ENGINE LIGHT– This iCar Pro code reader will help you save money and accurately diagnose check engine light problem. Very easy to use.
• EASY FITMENTT– The majority of cars made in the past 2 decades are fitted with an OBD2 diagnostic port, simply find the port and plug the iCar Pro in.
• FIT AND FORGET T– It really is possible to fit and forget beacuse it’s micro size and unique power saving functionality that protects your battery
• WORKS WITH HUNDREDS OF APPST–The Vgate iCar Pro Bluetooth Low Energy device works with the most popular OBD apps. Please find download instruction for Android device in product description.
• 2 YEAR WARRANTYT– We offer a 2 year warranty as standard. If you have any problem with the device simply send it back and we will despatch a brand new replacement the following working day.

Functions:

• Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database).
• Clear trouble codes and turn off the MIL ("Check Engine" light)
• Engine RPM
• Calculated Load Value
• Coolant Temperature
• Fuel System Status
• Vehicle Speed
• Short Term Fuel Trim
• Long Term Fuel Trim
• Intake Manifold Pressure
• Timing Advance
• Intake Air Temperature
• Air Flow Rate
• Absolute Throttle Position
• Oxygen sensor voltages/associated short term fuel trims
• Fuel System status
• Fuel Pressure

Tips before your purchase:

• For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information
• Label must state that the vehicle is OBD II compliant. To be sure your vehicle complies with OBD-II, look for a sticker on the vehicle
• under the hood in the engine compartment that clearly states “OBD II compliant or certified”.

OBD-II protocols supported:

• SAE J1850 PWM(41.6 Kbaud)
• SAE J1850 VPW(10.4 Kbaud)
• ISO9141-2(5 baud init,10.4 Kbaud)
• ISO14230-4 KWP(5 baud init,10.4 Kbaud)
• ISO14230-4 KWP(fast init,10.4 Kbaud)
• ISO15765-4 CAN(11bit ID,500 Kbaud)
• ISO15765-4 CAN(29bit ID,500 Kbaud)
• ISO15765-4 CAN(11bit ID,250 Kbaud)
• ISO15765-4 CAN(29bit ID,250 Kbaud)
• SAE J1939 CAN(29bit ID,250* Kbaud)
• USER1 CAN(11*bit ID,125* Kbaud)
• USER2 CAN(11*bit ID,50* kbaud)

Vehicle Coverage:

• Works on all OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles (Petrol cars from 2001 and diesel cars from 2003/2004 in Europe)
• How to setup Bluetooth pairing: BLE4.0 Dual mode version

Specification:

• Supply Voltage: 11.5V—15V
• Supply Current: <200Ma
• Standby Current: <30Ma ( TONWON Pro =<3Ma )
• Operating Temperature: -40℃–85℃
• Operating Humidity: 5%–95%RH Non-Dewfall

Package Includes:

• 1pc x Vgate iCar Pro Bluetooth 4.0 OBDII adapter
• 1pc x User manual
