Allosun Stud Finder Wall Scanner – 4 in 1 Metal Stud Detector TS530

This unit is an advanced detector.It can detect and locate metal, AC voltage and stud.In addition, it incorporates a measure tape.It can be used in construction, fitment, etc.

APPLICATIONS
This unit can be used when you want to do the following items:
1. Find metallic pipes in concrete.
2. Find electrical box, exhaust vent, conduit, rebar and ducting.
3. Trace hot wires behind ceiling, floor, and wall.
4. Measure the length of an object.

KEY FEATURES
1. Find the stud center
2. Find wood and metal studs
3. AC scanning to trace hot wire
4. Metal scanning for finding nail, pipe, rebar, and other hidden metallic object
5. Measure tape function
6. Auto power off

Stud mode
Wood stud of 30X30mm : 14mm
Metal mode
Iron pipe of 20mm: 25mm
Voltage mode
Typical depth of 50mm for 90~250V at 50~60 Hz.
Operation condition : -7~40 below 75% RH
Battery : 1x 6F22, 9V
Storage condition: -20~50 below 85% RH
Dimension: 180(L)X 73(W) X 32(T)mm
Weight : about 213g

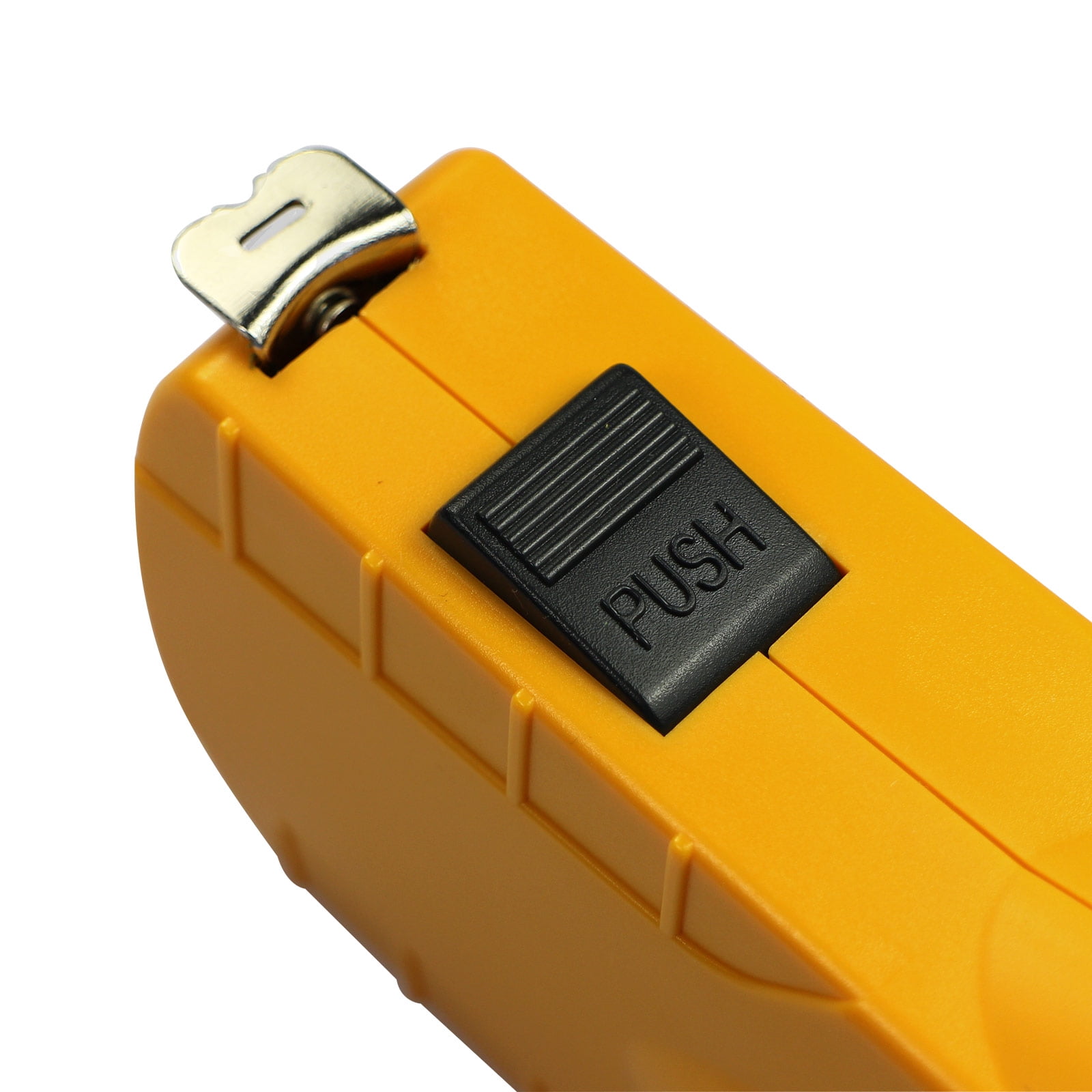

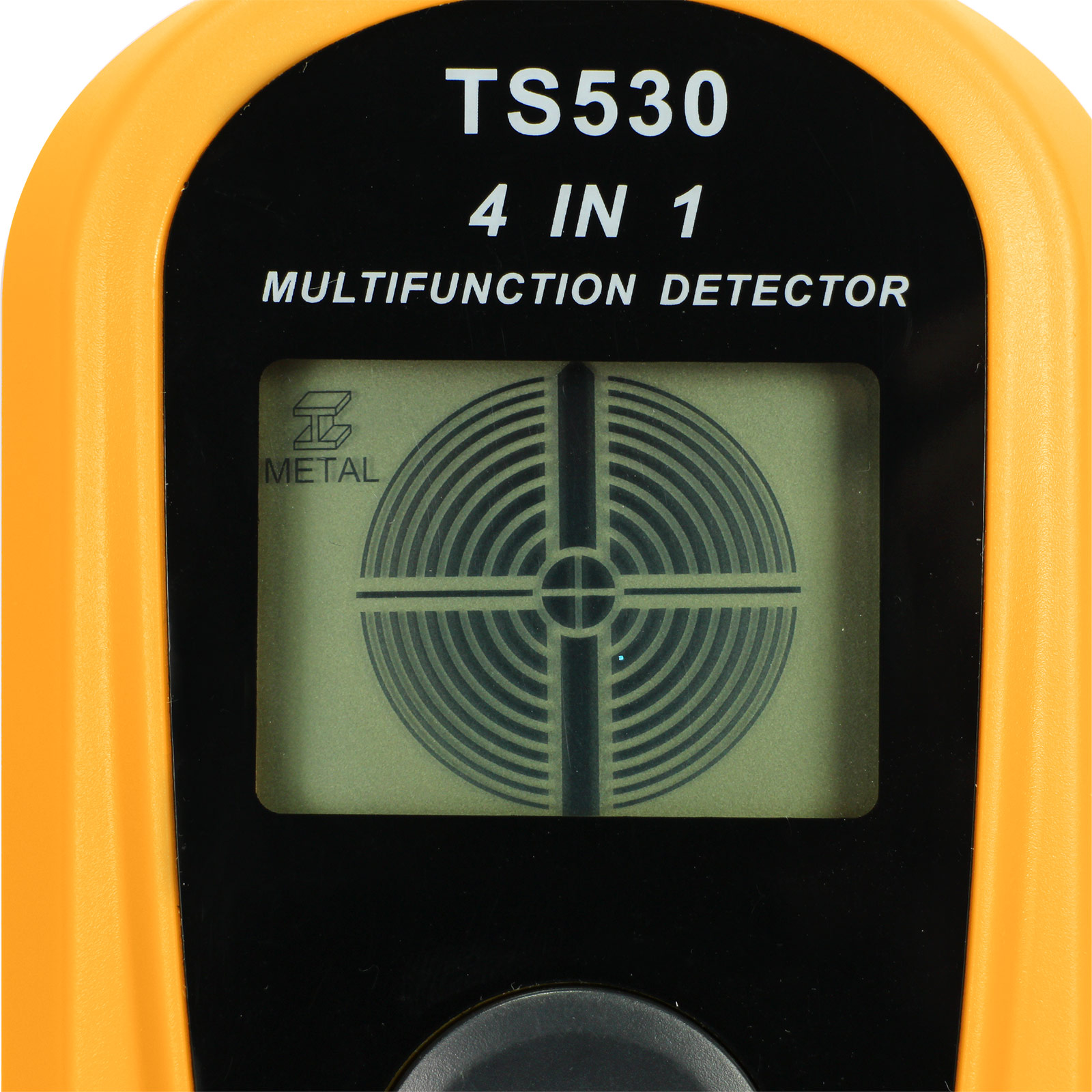

• 【Easy to Read LCD Display】Features LCD and sound signal indicate findings;2 meter measure tape inside;Pencil slider, pencil hole.
• 【Whole Alarm Icon】When detects an edge of object,the icon appears as an indicator.
• 【Spotlight & Groove Press】When detects an object, the spotlight appears and mark in the groove position.
• 【Mark Button】Press this button to mark dots on the wall surface.
• 【Power Supply】Auto power off and power supply by 1x 6F22, 9V.(Not Included)
