Detector CO & Smoke Combination Sound Alarm Monitor Detector Fire Sensor

detector CO & Smoke Combination Sound Alarm Monitor Detector Fire Sensor
Specification:
Description:

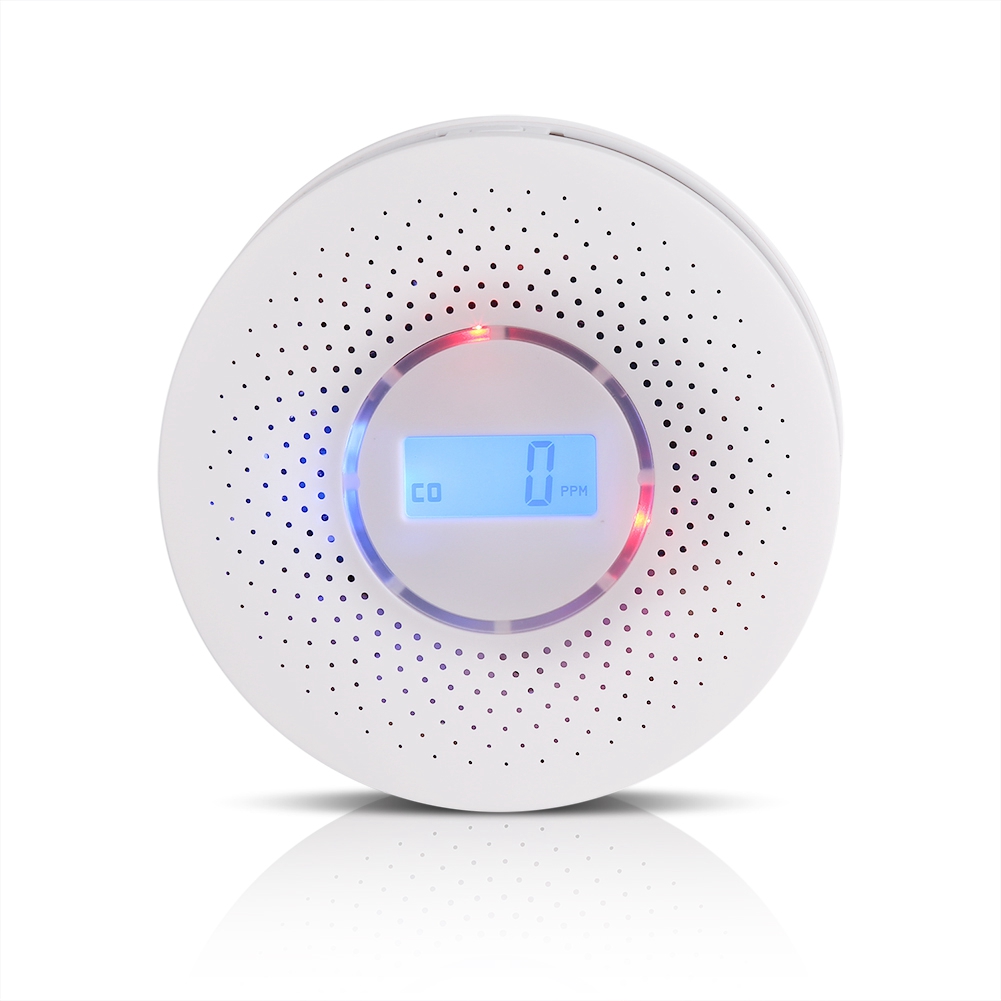

This standard size portable CO & smoke combination alarm monitors the air for the of CO or for a potential fire. The alarm will generate sound alarm and accompanied by the flashing red LED light when elevated CO level is detected or there is a potential fire. Flexible placement for universal application: such as installation for travel trailer, boat, , home, house, natural gas detection, truck, car, garage, bathroom, kitchen area, household, office, warehouse, etc…

Features:
Adopts micro processing control and electrochemical sensor and infrared photoelectric sensor, high stability, low power consumption and small sensitivity drift. Digital LED display shows the level of the unit is sensing. Alarm function: the alarm will generate sound alarm and accompanied by the flashing red LED light when elevated CO level is over 100PPM. When breaking out of fire, the alarm will generate sound alarm and accompanied by the flashing blue LED light when smoke concentration exceeded 0.1%db/m. The alarm will emit four short alarm beeps when is detected and will emit continuous beeps when smoke is detected. The alarm will also emit continuous beeps when both smoke and are detected at the same time. Alarm memory level: displays the CO level recorded by the alarm since it was last reset or unplugged. Low power prompt: At low power, the red light flashes once every 20 seconds, while the LCD screen shows "Lb." Alarm pause mute mode: When in emergency, press the test button, the LED light flashes, indicating that it is in mute mode.
Specification:
Condition: 100%
Material: Plastic
Color: White
Quiescent Curret: <80uA
Alarm Current: <30mA
Detection Concentration: 000-999ppm

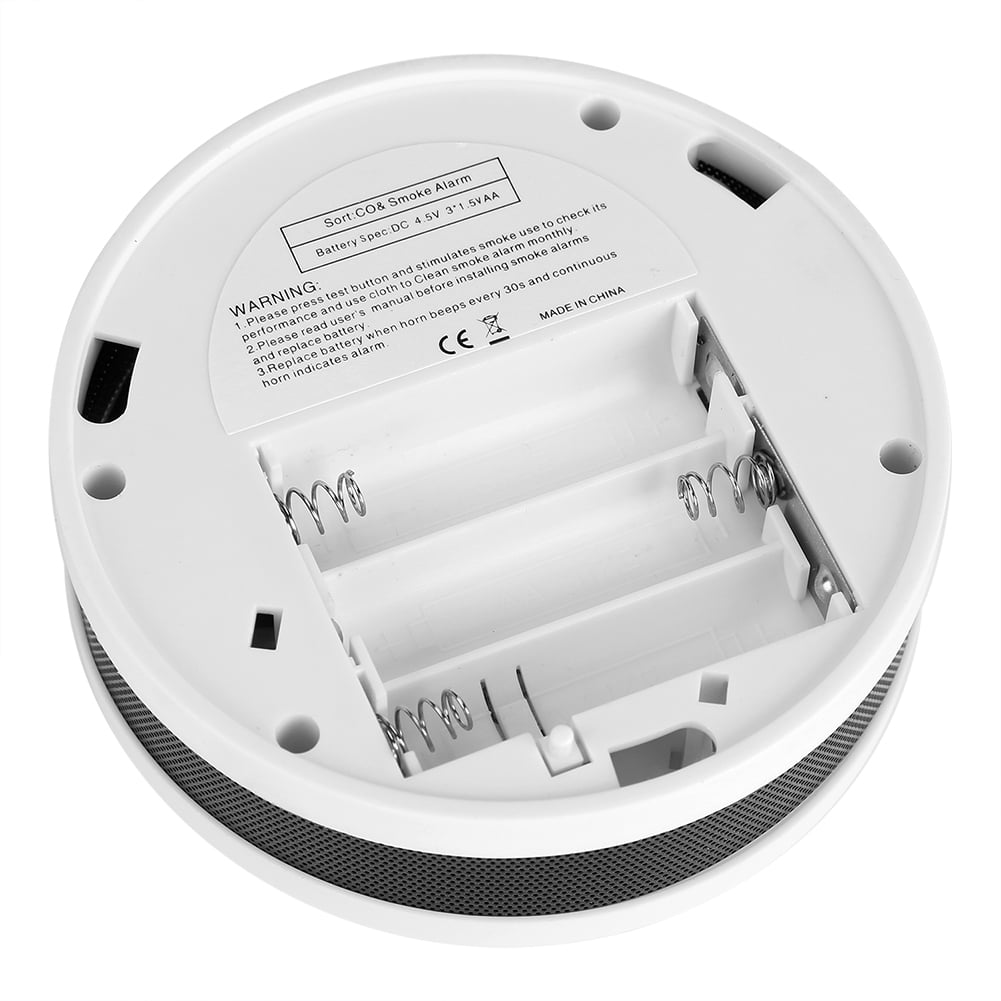

Power supply: 3 x 1.5V AA battery No Included
Operating temperature: 0-50 degrees Celsius
Working humidity: 10-95%RH
Smoke Sensor Sensitive: 0.1%db/m-9.9%db/m
Sensor: electrochemical sensor and infrared photoelectric sensor
Product Size: Approx. 105 x 37mm / 4.13 x 1.46inch
Package Weight: Approx. 200g

Package Included:
1 x Detector
1 x Set Of Install Screws

Smoke detector protection area: when the space height is 6-12 meters, the protection area of a detector is 80 meters for the general protection site, and the protection area is 60 meters when the space height is 6 meters.

Installation Method:
1. Usually, detectors should be installed in bedrooms, living areas, cars and other places where people stay for a long time. It is suggested that they should be installed in bedrooms, corridors, basements, cars and living areas.
2. As the concentration of and the smoke concentration are lighter than the air, the detector should be installed at 0.3-1 meters below the ceiling.
3. During installation, the detector should not be too close to the fire, lest the detector is baked by the flame; It can not be installed near the exhaust fan, door & window edge and bathroom with heavy water ; Also it can not be installed in a large area of oil smoke so as to prevent the fume from blocking the probe into the hole, which will affect the sensitivity of the detector.

This Product Should Not Be Installed in The
