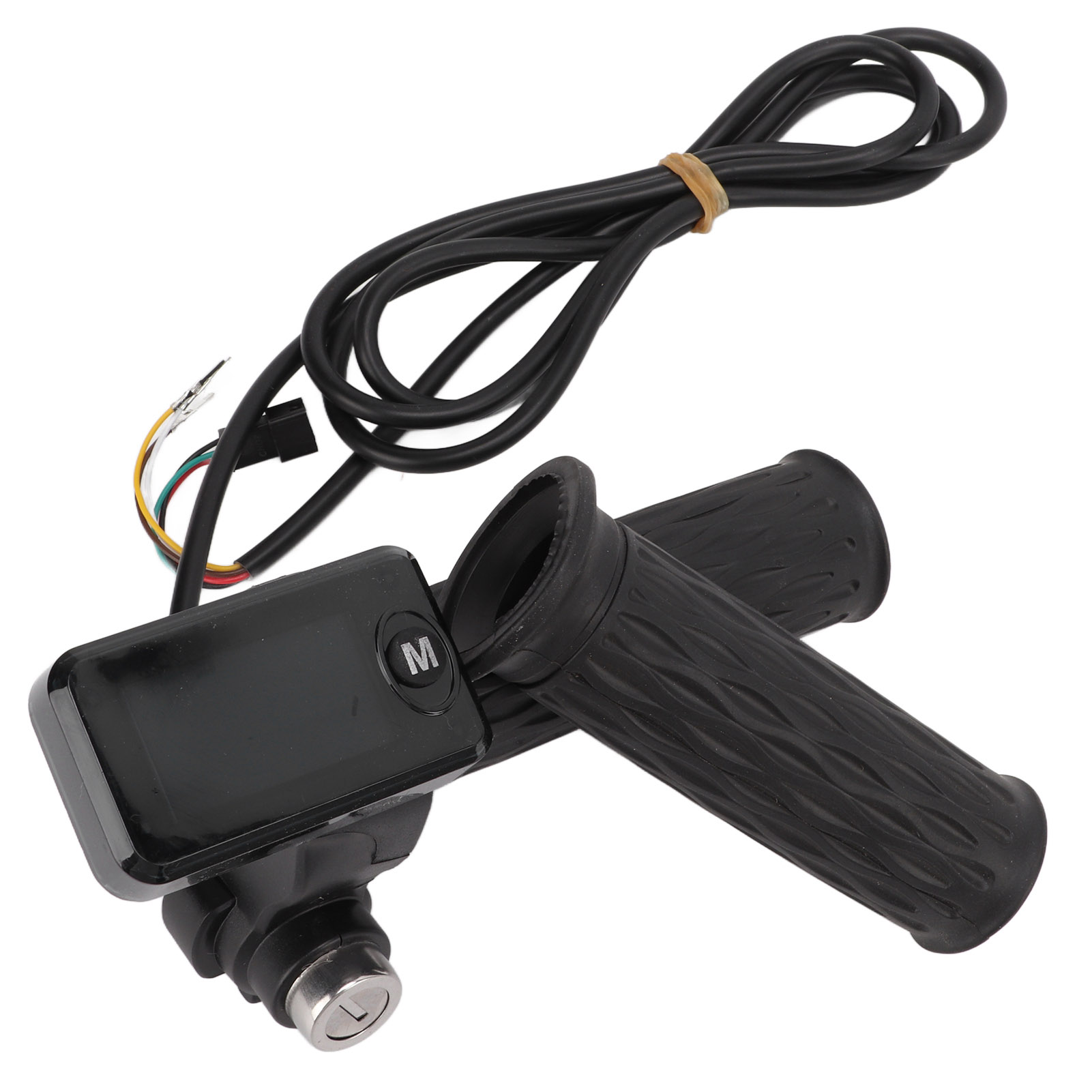

Throttle Grips, 1 Pair Anti Slip Heat Resistant Throttle Grips Flexible with Cable Key Knock for Electric
Specification:
Item Type: Electric Bike Throttle Grip
Material: Rubber (grip cover) + ABS Plastic Material (body)
Product Color: As Pictures Shown
Product Weight: Approx. 330g / 11.6oz
LCD Display Voltage: 24V-72V
Hall Wire: Red, Black, and Green.
Red: Hall 5V Positive Input
Black: Hall Negative (ground Wire)
Green: Hall Voltage (signal) Output
Switch Wire: Yellow and White
Yellow: The positive pole of the power supply is output from the lock or switch.
White: The positive pole of the power supply is input to the lock or switch.
Speed Line: Brown cable is speed line (connect to any one of the three motor phase wires)

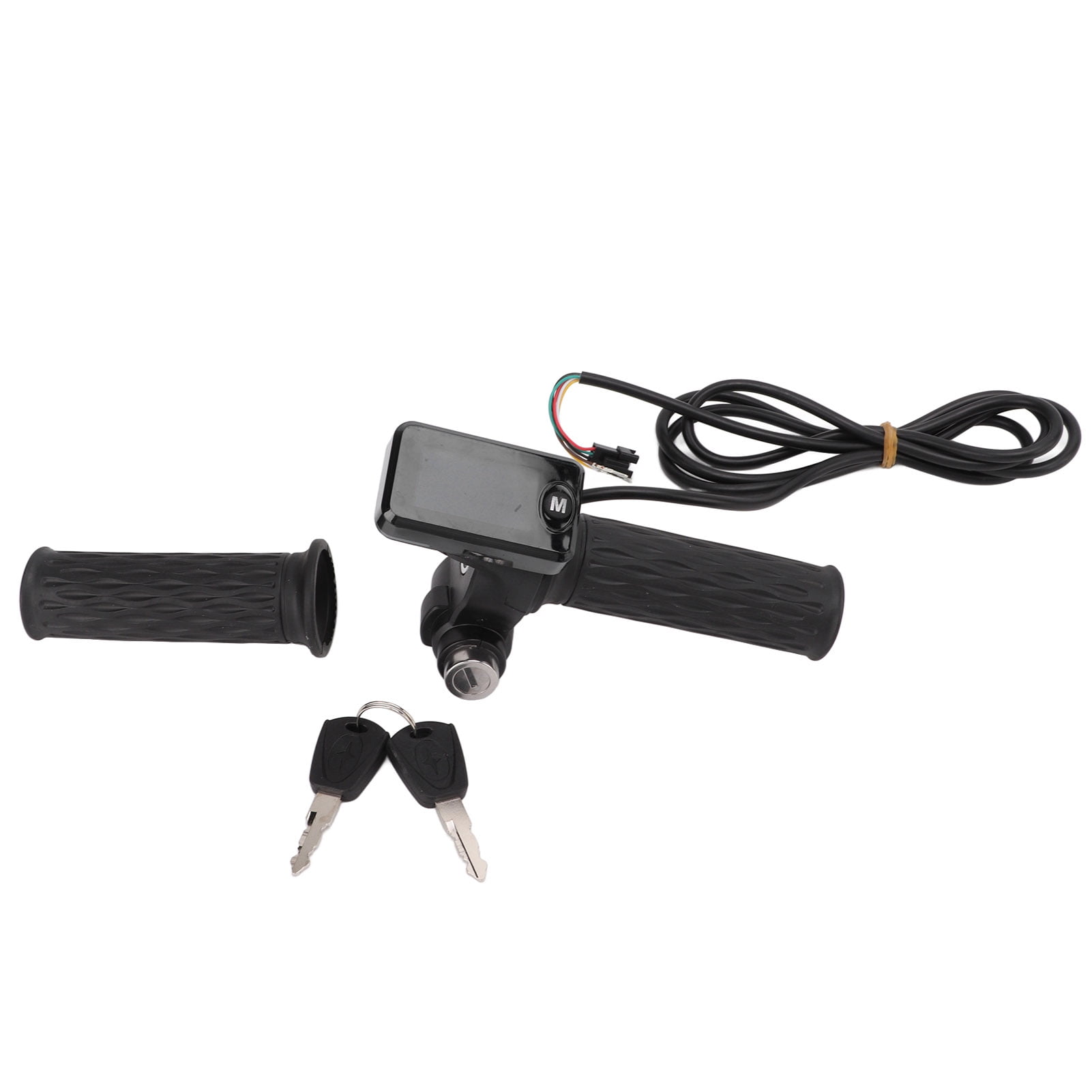

Package List:
1 x Throttle Grips
1 x Handlebar Grip
2 x Key
Note:
The red, green, and black Hall wires are a plug. Once these three wires are connected incorrectly, the Hall sensor will be burnt and the throttle grip will fail.
- Rubber Material: The handlebar grip is made of rubber material and has a non slip design to make driving safer.
- LCD Screen: The LCD screen clearly displays the battery level of the electric , making driving more secure.
- ABS Material: The throttle grip body is made of waterproof ABS plastic material, which is anti fall, resistant to heat and waterproof.
