Feature:

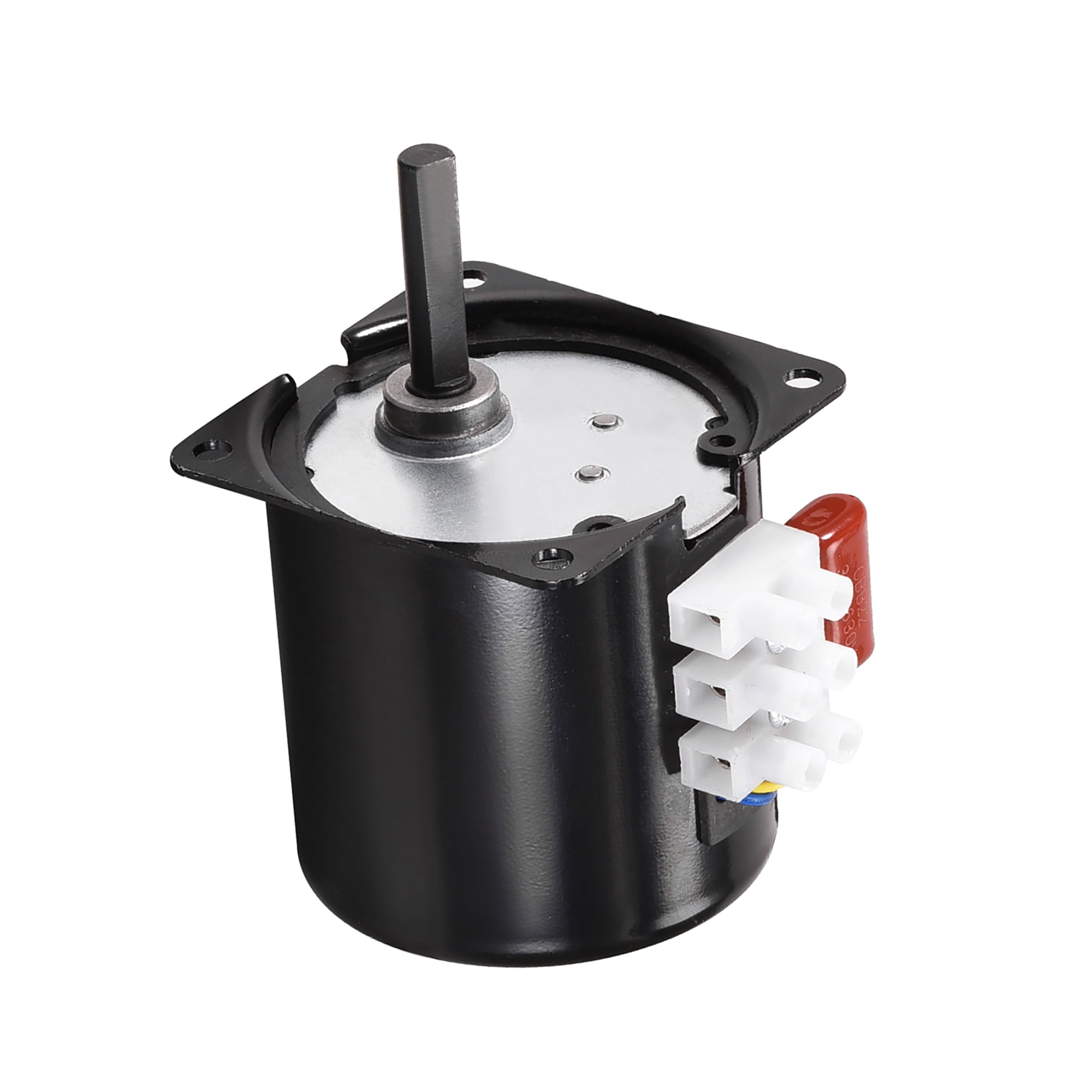

1. Designed with 7mm eccentric shaft .
2. This product is made up of permanent magnet synchronous motor and reduction gears.
3. Low consumption, large torque, low noise, small size and easy to use.
4. A synchronous motor of CW(clockwise) / CCW(counterclockwise).
Specification
Rated Voltage: AC 110V
Power: 14W
Manner of Working: CCW/CW
Rated Frequency: 50-60Hz
Rated Speed: 30R/Min
Overall Length 90mm / 3.54 inch
Overall Diameter: 60mm / 2.36 inch
Shaft Length: 30mm / 1.18 inch
Shaft Diameter: 7mm / 0.28 inch
Mounting Hole Diameter: 4.5mm / 0.18 inch

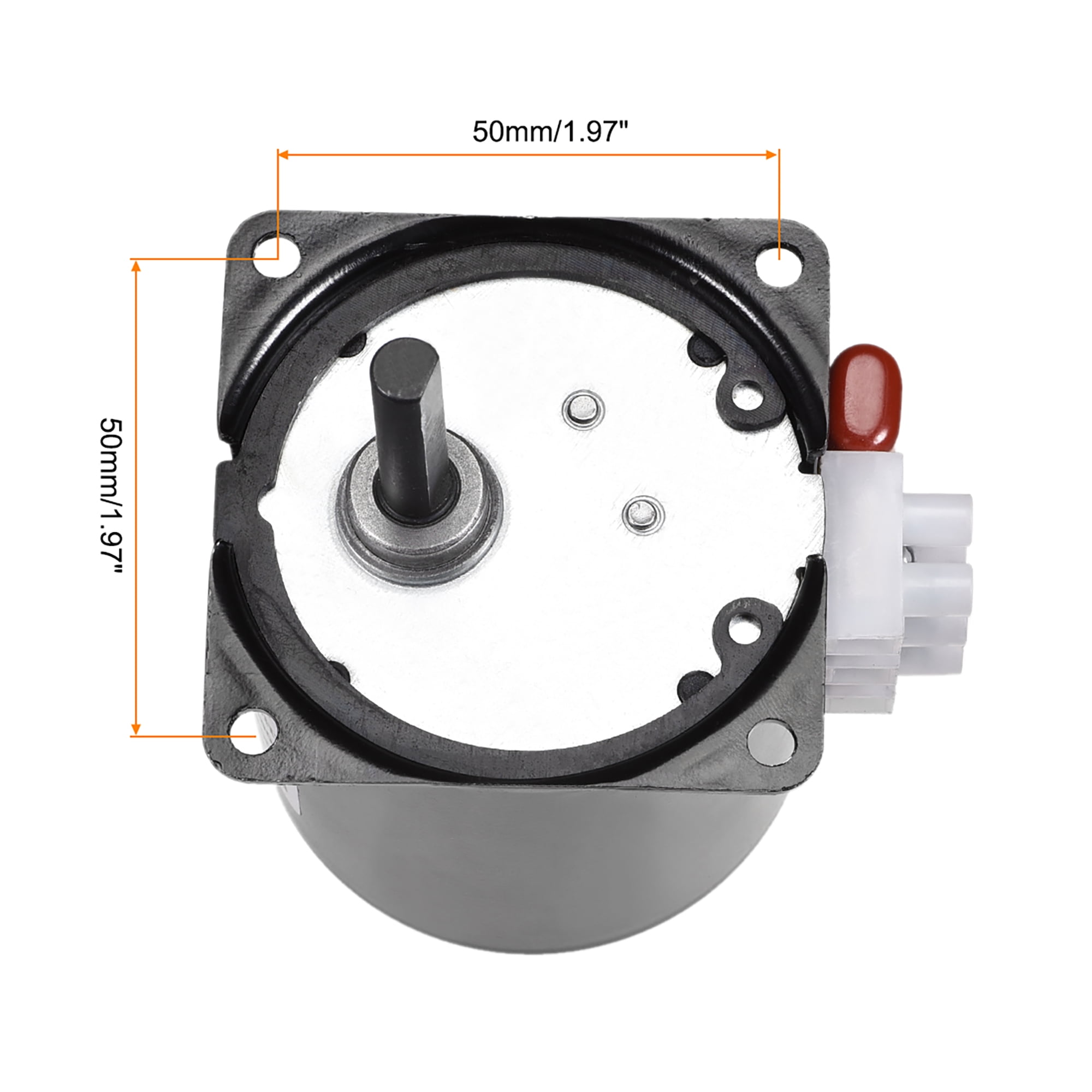

Mounting Hole Center Distance: 50mm / 1.97 inch
Package Content:

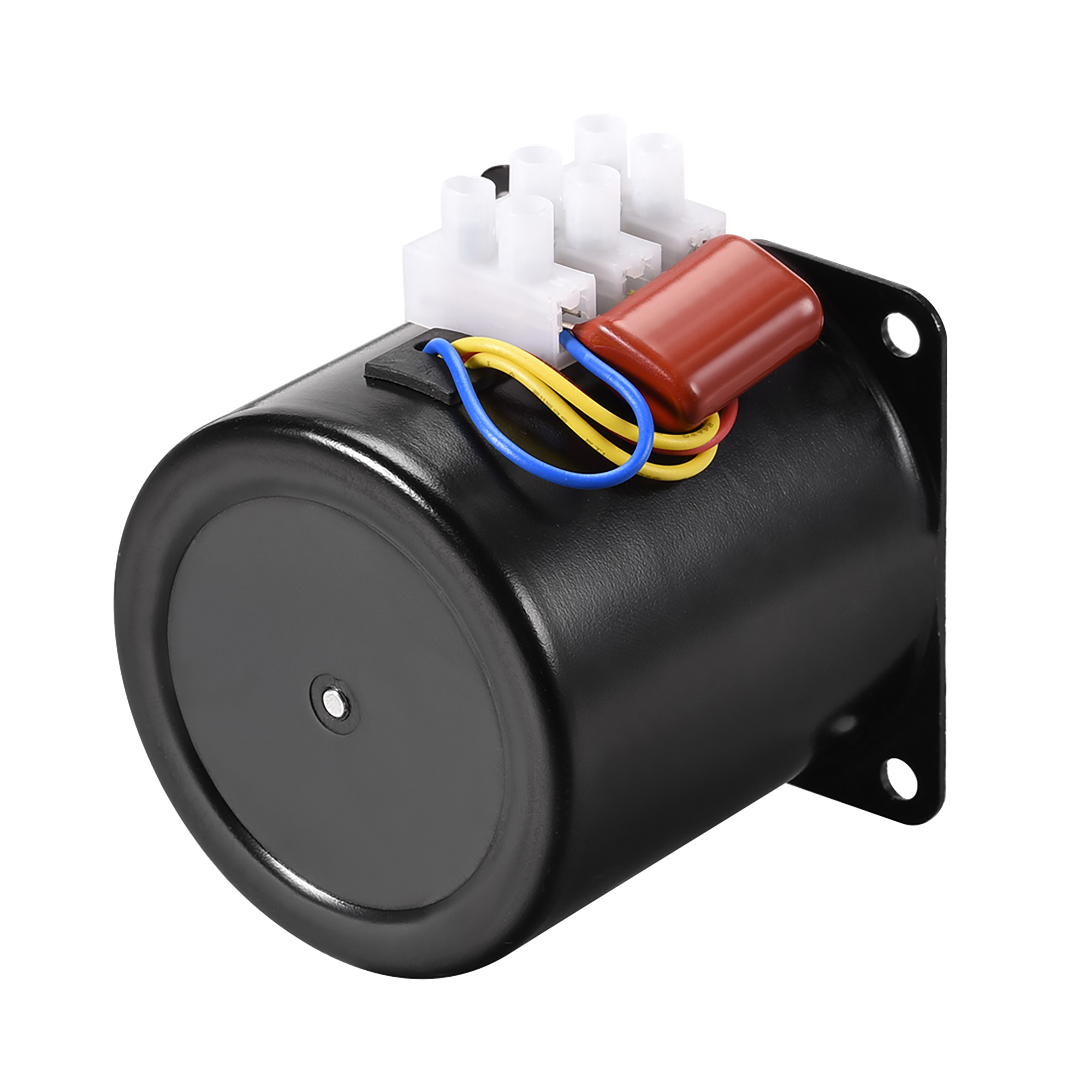

1 x Electric Synchronous Motor
Description:
It is mainly applied for electric fan , electric heaters, electrical curtain, gluing machine, monitor, stage lights, advertisement electrical movement and other kinds of electrical appliances.
