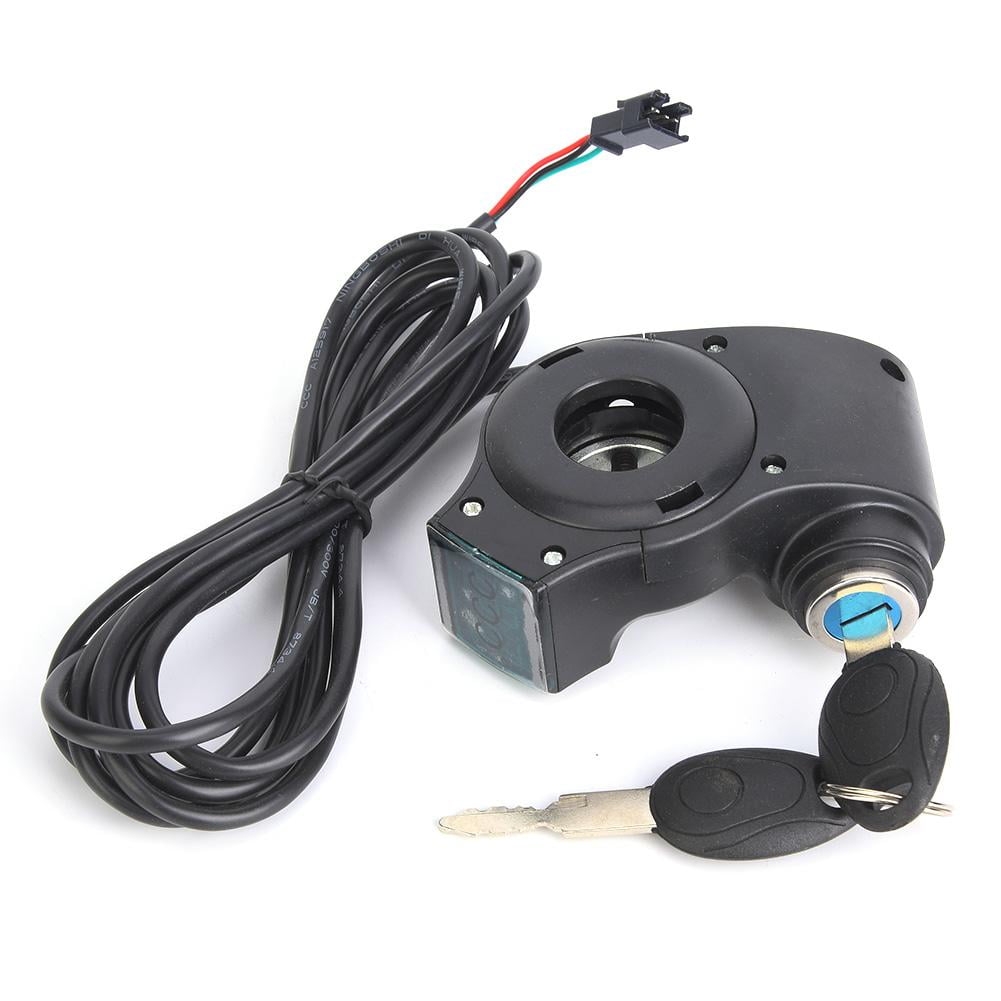

EBTOOLS E-Bike Battery Display with Key Lock,E-Bike Thumb Throttle Digital Battery Voltage Display Switch Power

Feature:

1. No matter -acid batteries, lithium batteries, water batteries, dry batteries.

2. All kinds of electric vehicle (12V to 99V) can be automatically identified and displayed in real time.

3. Real-time digital voltage display, intuitive, convenient, can accurately judge the remaining electricity, driving distance.

4. By turning the real-time voltage value can accurately determine the amount of remaining power, convenient for customers to drive.

5. The real-time voltage value can accurately judge whether the lithium battery is damaged.

Specification:

Condition: 100% Brand New

Item Type: E-Bike Voltage Display

Material: plastic

Color: as picture shown

Model: S series (5V-99V automatic identification of electric vehicle voltage)

Efficiency: 98% or higher

Hall grade: linear hall high quality rubber imported LED digital display lamp

Working voltage: turn DC0.8V-4.2V

Power display: regardless of -acid battery, lithium battery, regardless of voltage, can be automatically identified (12V, 24V, 36V, 48V, 60V, 72V electric vehicles can be directly used, some 84V electric vehicles can be used)

Terminal length: 2m by default

Voltage digital display turn to completely replace the analog power display turn, 12V to 84V ev automatic identification, real-time display voltage, accurate judgment of battery power, convenient, practical.

1. The real-time voltage value can be used to accurately judge the remaining amount of electricity, which is convenient for customers to drive!

2, by turning the real-time voltage value can accurately determine whether the lithium battery damage, convenient after sale!

3, by turning the voltage value can judge the quality of lithium battery, convenient for the factory to purchase qualified lithium battery!

4, automatic identification voltage under 100V electric vehicles, can be general, convenient for factory procurement, save the cost of capital and management costs!5. There are only 4 wires for ordinary electric display, which is convenient for workers to install and save time.

Note:

Non-professional installation please pay attention to the line sequence, do not connect the wrong line, otherwise it is easy to cause hall and LED tube burn.

Basic parameters: according to different battery materials, old and new, different batch, the number of voltage v will be different, please test a few times, you can get your electric vehicle battery parameters.

For 12v electric bike, maximum voltage is about 12.6v, mini is about 9v or higher,

For 24 electric bike, maximum voltage is about 29.4v, mini is about 21v or higher,

For 36v electric bike, maximum voltage is about 42v, mini is about 29v or higher,

For 48v electric bike, maximum voltage is about 54.6v, /58.8v, mini is about 40v or higher,

For 60v electric bike, maximum voltage is about 72v, mini is about 49v or higher,

For 72v electric bike, maximum voltage is about 84v, mini is about 60v or higher,

For other electric bike with higher voltage there should be a voltmeter installed.

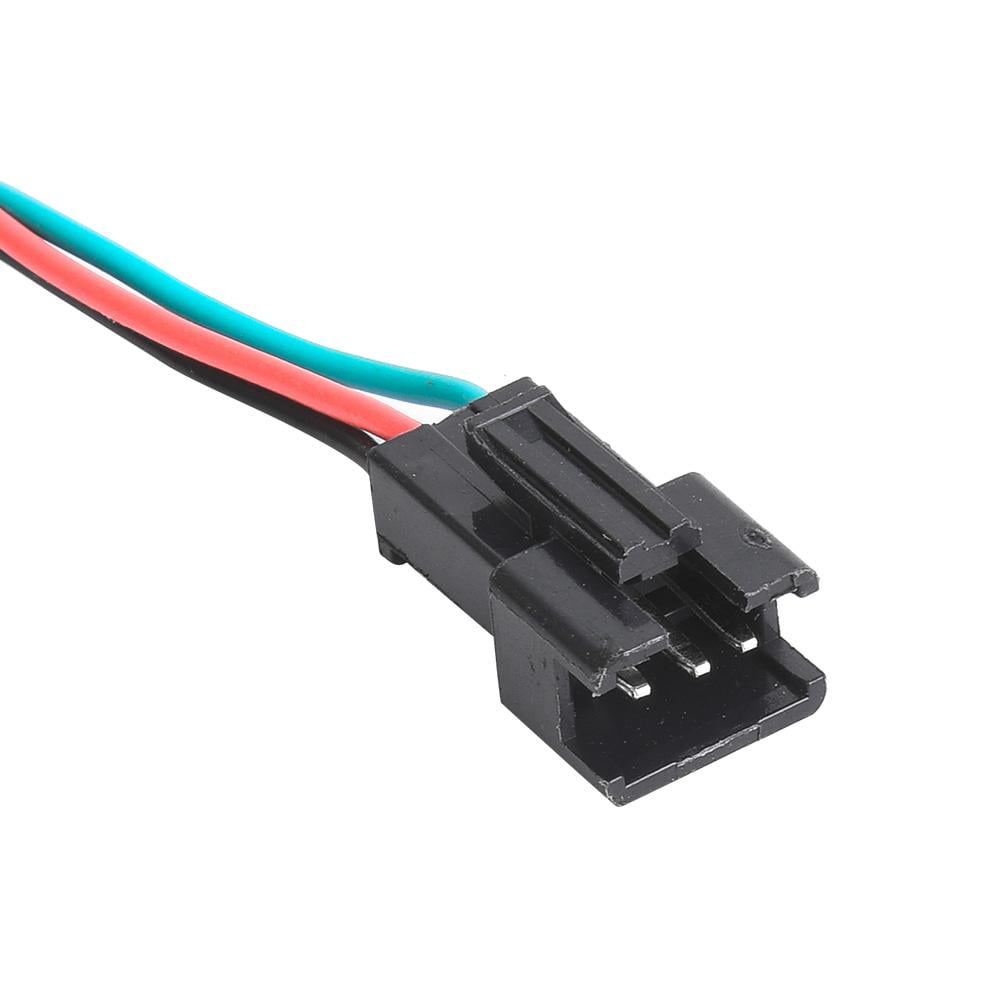

Installation method: 3 wires, red for positive, black for negative, green for signal, and yellow for positive.

Package List:

1 x E-Bike Voltage Display

2 x Keys
