Stud Finder Wall Scanner, 8 in 1 Multi-function Upgraded Smart Stud Sensor, Wall Scanner with LCD Display and Audio Alarm for Wood AC Wire Metal Studs Detection Building Material Damp Tester

Product Description:

Why do I need a stud detector?

When you want to buy a new TV, hang a new picture on the wall or decorate the house, but accidentally break the AC power cord when you make a hole in the wall, you need to call an electrician to repair it. It is also dangerous if you come into contact with wires.
But don’t worry, this stud scanner is an upgraded 8-in-1 wall-mounted scanner with 8 scanning modes. Easily detect whether there is an object behind the wall to help you avoid these troubles.

Step 1: Calibration tool is needed every time you scan the wall
Place it on the wall steadily, and then press the scan button. The LCD will display the process of signal strength changing from strong to weak (the horizontal bar gradually decreases), and you need to hear a beep. When you don’t know the thickness of the wall, you can use Stud 1/2″-> Stud 1″-> Stud 1 1/2″ to try scanning.
The metal scan mode and AC line scan mode need to be calibrated in an open place away from metal and wires. To ensure accuracy, the product cannot be rotated after calibration.

Step 2: Move slowly to scan the wall
You need to press the scan button to slowly move along the wall. If you leave the horizontal line, please recalibrate the product. The LCD screen signal changes and voice prompts help you quickly find the position of the stud

Step 3: Follow the prompts
When the signal is full and the buzzer is the loudest, it means that the center point has been found. Mark a mark on the top of the stud detector with a pencil.

When you need to scan metal or AC wires according to the above steps, after marking with a pencil, you need to recalibrate the metal or AC wire scanning mode, and then return to the marked point to scan

Product Properties:
With green backlight and buzzer prompt
LCD indication
Battery type: 9V battery (6F22)
Working current: <50ma
Automatic shutdown time: about 3 minutes

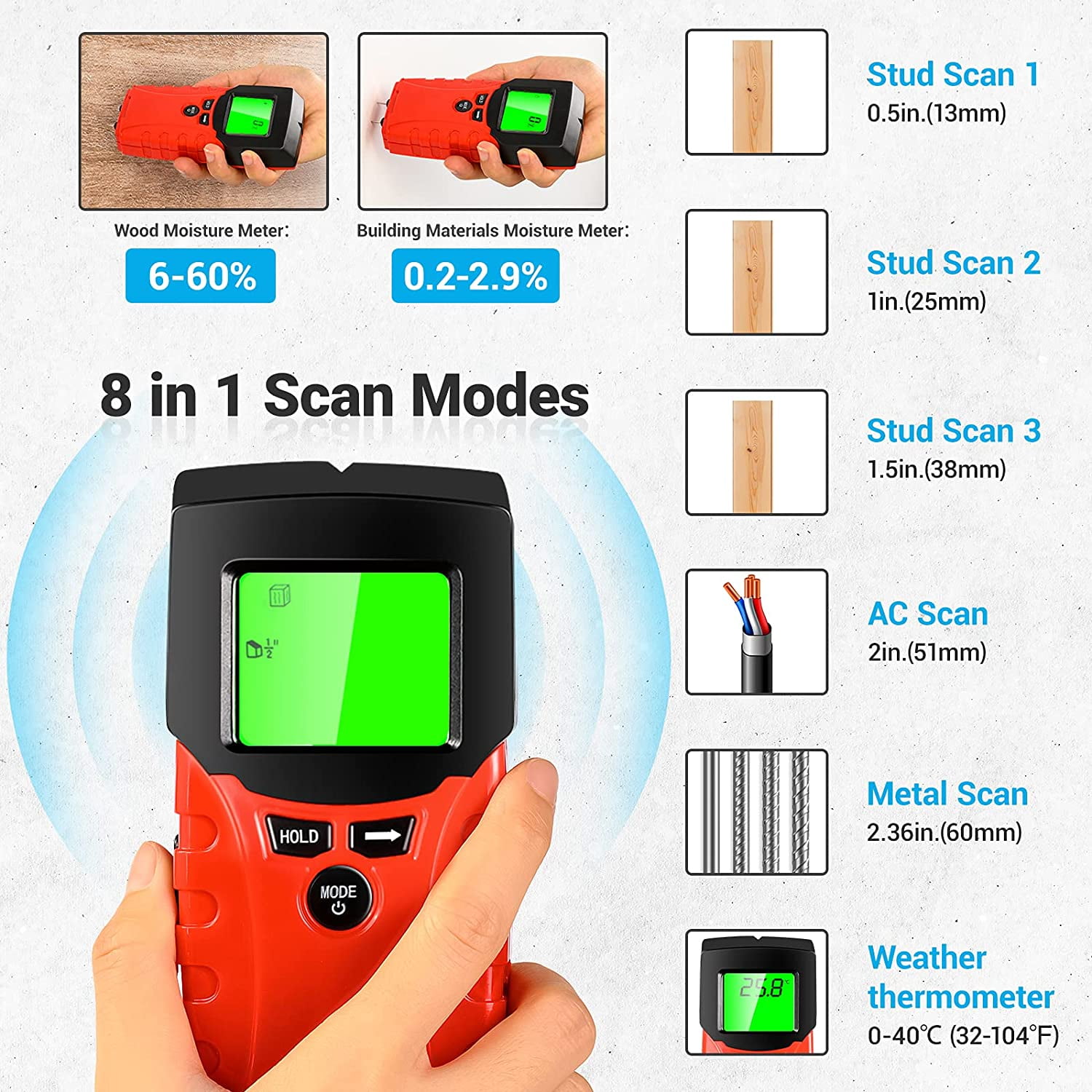

• 【8 in 1 Stud Finder & Moisture Meter】Our digital wall scanner has 8 scanning modes, Includes 1/2inch stud scan, 1inch stud scan, 1.5inch stud scan, 2.36inch metal scan, 2inch AC wires scan, Environment Thermometer(0-40℃), Wood humidity measuring and Building materials humidity measuring. More mode choices, whether you are a professional, a homeowner or a DIY enthusiast, will make your home projects easier.
• 【More Accurate than Standard Stud Finders】Our stud detector uses latest and most sensitive chip which can precisely and rapidly detect wood, pipes, metal and AC wires hidden in the walls, floors and ceilings. The large LCD display allows you to see clearly even in dim environments.

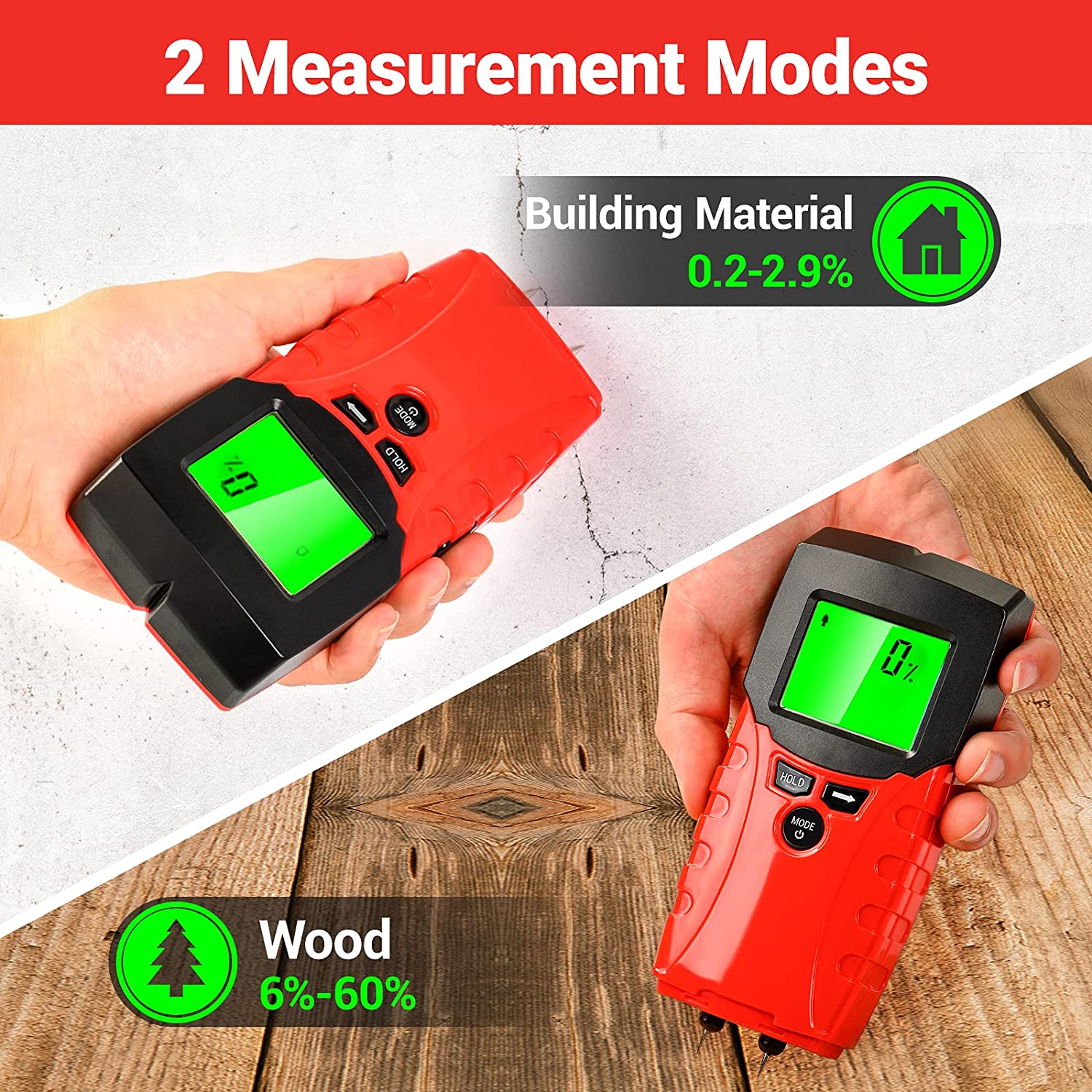

• 【Moisture Meter Function】Designed for moisture testing of wood and building materials, with 2 pins to help penetrate the test surface and quickly understand the moisture content in the wall. Let you to quickly find hidden water leaks on walls and surfaces, wide measuring range(Wood: 6%-60%, Building materials: 0.2-2.9%).
• 【Auto-Calibration & Simple Use】You just need to open the stud finder and press the scan button on the left to start scanning. When the hidden stud is found, the signal bar on the LCD display will remind you of the distance and direction of the approaching object, and beep to determine the location .HOLD button allows you to retain humidity and temperature data, giving you a practical and reliable measurement helper.
• 【AC Wires Warning】Our wall scanner will detect AC voltage in real time in any mode. When a voltage is present, an AC warning symbol will appear on the display to remind you to the presence of live AC wires, which helps you avoid danger when home renovation, mounting your TV, bathroom cabinet, photo frame, garage racks.
