Ancel AS100 Car Code Reader Automotive Diagnostic Tool OBD2 Scanner OBD Scan Tool Engine Detector Check Engine Analyzer OBDII Car Auto Diagnostic Tool Turn off MIL Read Clear Error Codes Scanner

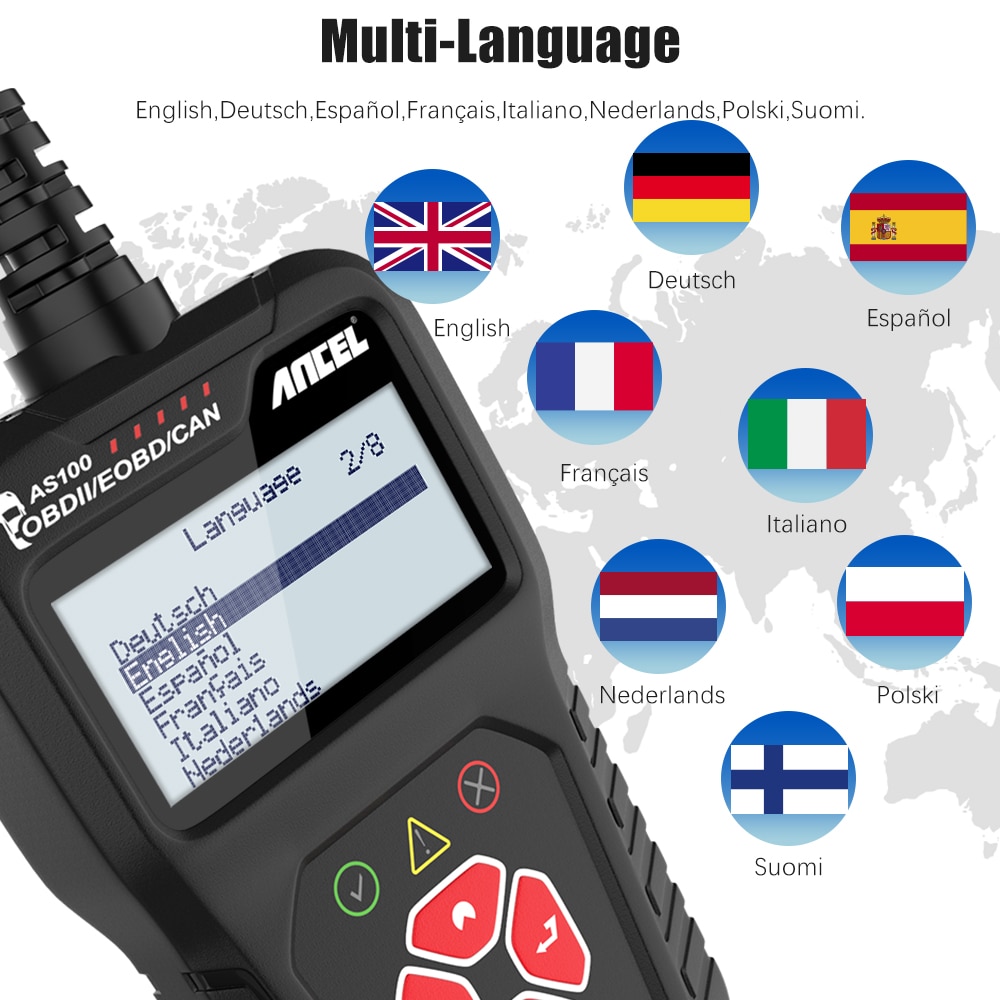

Ancel AS100 OBD2 scanner helps car owner find vehicle engine fault and give repair solutions. The OBDII auto code reader checks engine, turns off engine warning light. Ancel AS100 auto diagnostic tool can read and erase codes, etc.  It works for most vehicles (12V 16Pin). It supports multiple languages.

Ancel AS100 Auto OBD2 Scanner:

1. Unique key design, colorful screen

2. Quick Test: Support quick diagnosis and one-click DTC clearing for all obd2 car. Quick and easy.

3. Data Stream and Waveform Recording and Playback: can analyze the faults that only reoccur during driving and can quickly rectify car faults.

4. Quick support: Provide detailed DTC online help so that maintenance technicians can quickly rectify faults and improve diagnosis efficiency Online



OBD2 Automotive Diagnostic Tool Functions:

1. Read Codes

Show the detailed description of the Diagnostic Trouble Code (DTCs)

2. Erase Codes & Reset

Turns off Check Engine Light (MIL), clears codes and resets monitors

3. Data Stream

Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data

4. I/M Readiness Status

Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing

5. Read Live Data Stream

Show the information of continuous data stream from a vehicle in live graphic (waveform) display

6. View Freeze Frame Data

Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs

7. O2 Sensor Test

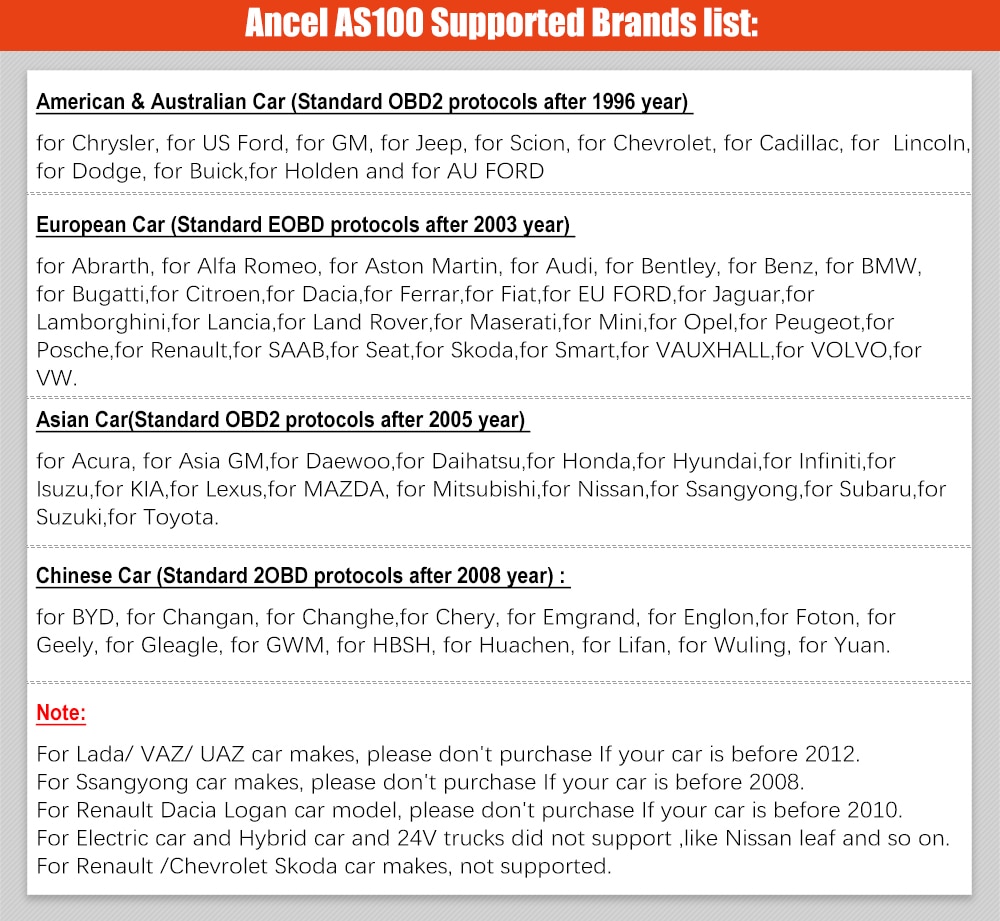

Supported Vehicles:

American (USA) car:

Compatible with Standard OBD2 Cars after 1996:

for Chrysler, Ford, GM, Jeep

European Car:

Compatible with Standard OBD2 Cars after 2003:

for Alfa Romeo, SAAB, Acura, Opel, Audi, Seat, Bentley, Skoda, Daewoo, Benz, Daihatsu, Land Rover, BMW, Vauxhall, Volvo, VW, Ford, Jaguar

France Car after 2006:

for Citroen, Fiat, Renault, Peugeot

Not Support for Renault Clio 2/Megane/Dacia Logan,

Japanese Car

Compatible with Standard OBD2 Cars after 2005:

for KIA, Isuzu, Honda, Mitsubishi, Hyundai, Dacia, Lexus, Mazda, Nissan, Subaru, Suzuki, Toyota



Note:

Even though it compatible with most cars, different regions support the vehicle OBD2 protocol at different times, or some car is special design, so it may not compatible with some cars which do not support OBD2 protocol. Especially Japanese and Korean car brand.And this device only have OBD2 Functions,do not have Special Functions, Like ABS Reset, Airbag Reset…

Please send us email in below format: xx, 2005, 2.0cc, Diesel, we will check it for you.

Warning:

Not Support Russian Cars VAZ,UAZ,LADA; Not works with trucks

For Ssangyong Actyon, from 2009 to 2017 years.

For Ssangyong Korando, 2.0 TD Diesel, from 2013 to 2017 years.

For Ssangyong Kyron, 2.0 Diesel, from 2010 to 2017 years.

For Ssangyong Rexton, 2011 to 2017 years.

Not Support Opel Corsa c 2004 1.3 CDTI.

Nor Support vw golf 4 2002.

Ancel AS100 Support Protocol:

1. SAE J1850 PWM(41.6Kbaud)

2. SAE J1850 VPW(10.4Kbaud)

3. ISO9141-2(5 baud init,10.4Kbaud)

4. ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5. ISO14230-4 KWP(fast init,10.4 Kbaud)

6. ISO15765-4 CAN(11bit ID,500 Kbaud)

7. ISO15765-4 CAN(29bit ID,500 Kbaud)

8. ISO15765-4 CAN(11bit ID,250 Kbaud)

9. ISO15765-4 CAN(29bit ID,250 Kbaud)

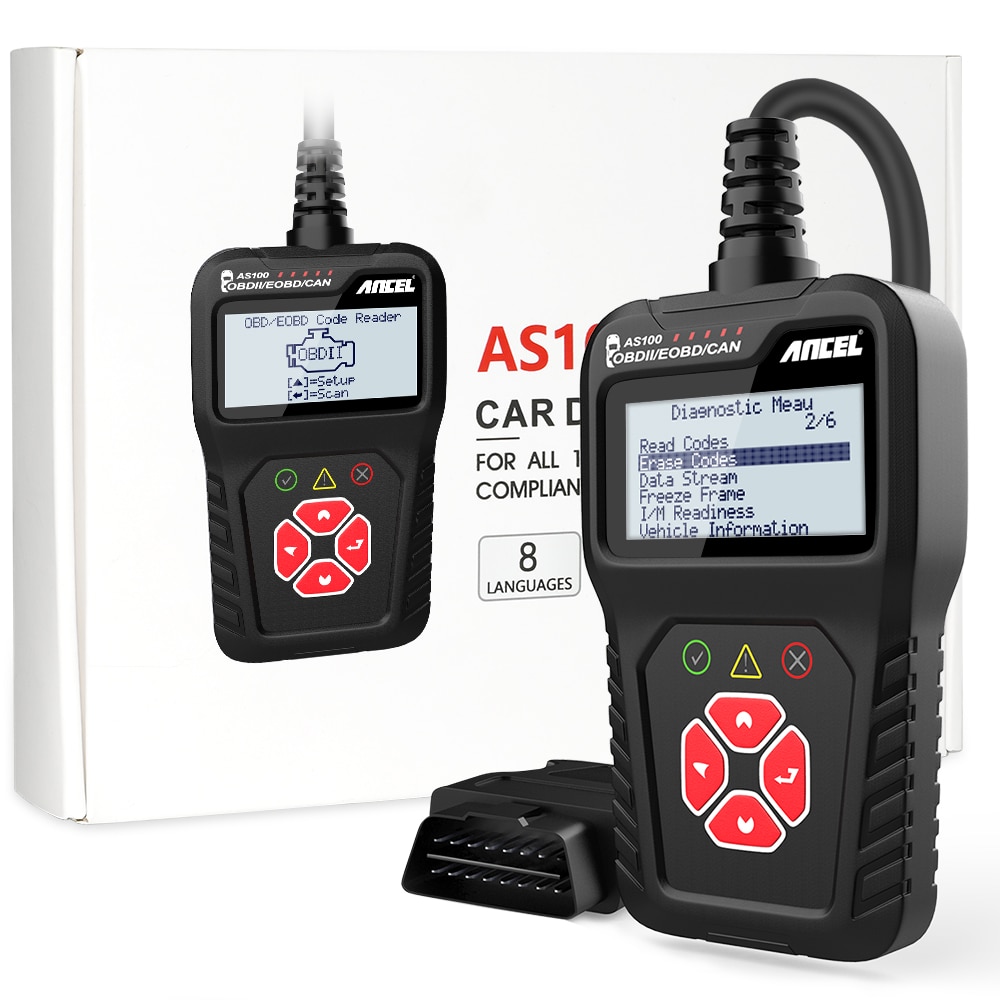

Package List:

1 * Ancel AS100 OBD2 Scanner

1 * User’s Manual

• Ancel AS100 OBD2 auto scanner checks engine, reads and clears error codes, turns off MIL "Engine Check"
• The OBD2 auto code reader diagnostic tool only works for engine.
• Ancel AS100 works for most US vehicles after 1996 (12V, 16Pin)
• Ancel AS100 auto scanner supports OBDII Protocols
