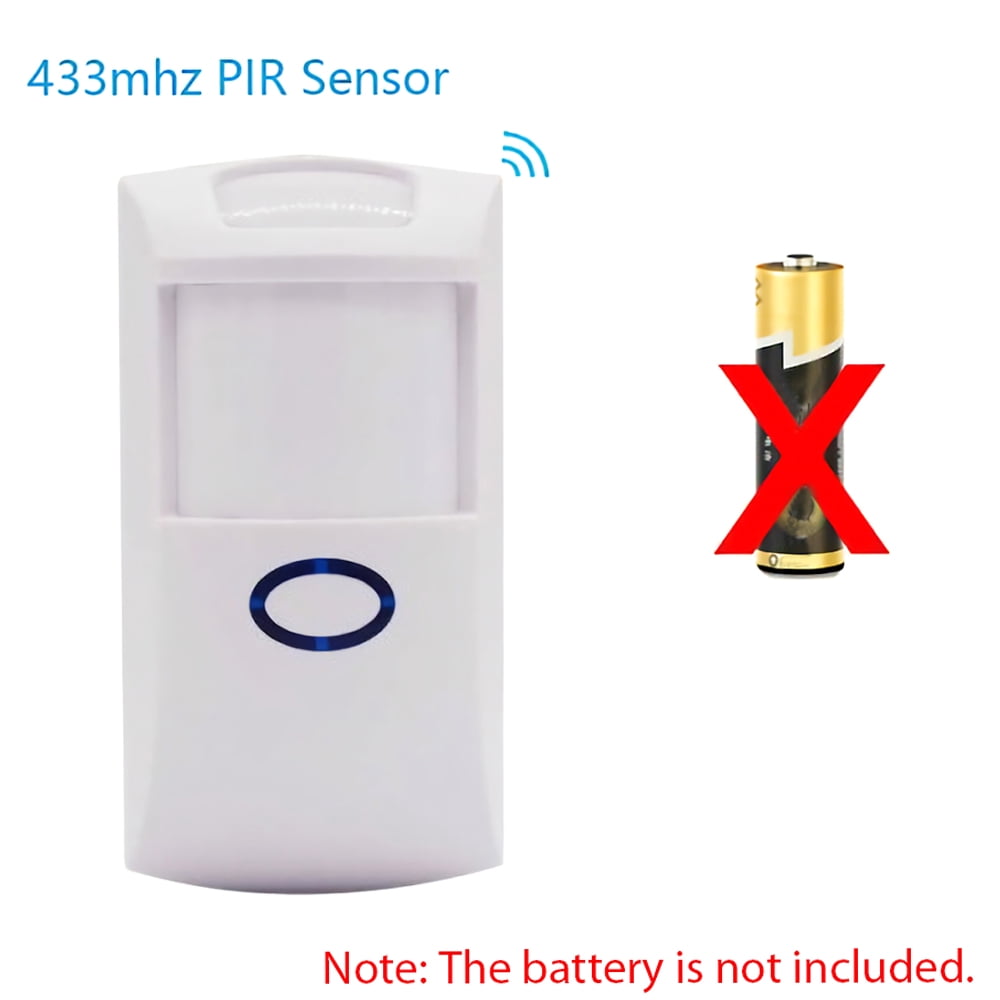

PIR2 is a 433MHz RF PIR motion sensor that for human detection. The motion detector can work with the RF 433(Not included), providing human detected alarm message push to your phone.

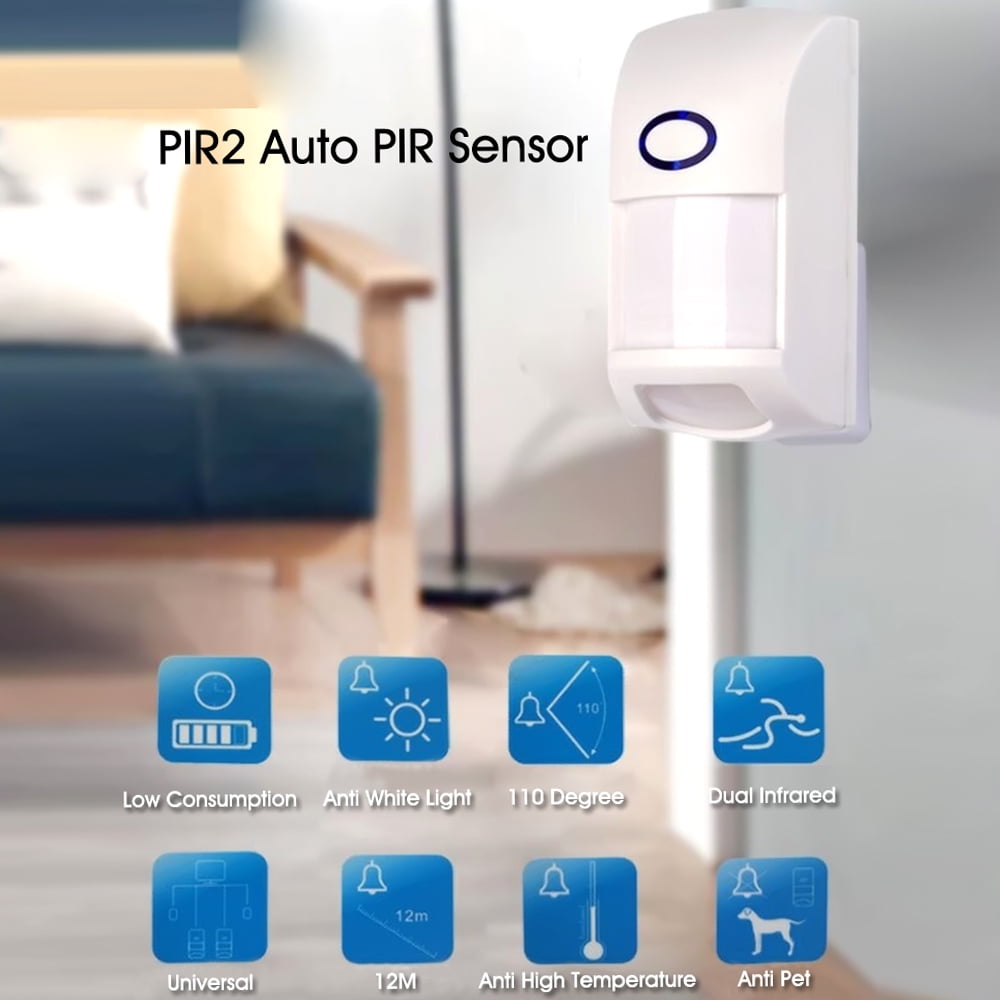

Features for PIR2 sensor
– 433MHz RF PIR motion sensor for human detection.
– Dual infrared
– Ultra-low power microprocessors
– Double temperature compensation technology
– Robust and durable, suitable for homes, offices, sheds, garages etc.
– Easy installation and set-up, wall-mounted
Specification for PIR2 sensor
433MHz Transmit distance: 150m (open)
Voltage: 3V (2*AA)
Battery type: 2*AA (not included)
Standby current: ≤9μA
Alarm current: ≤10mA
Wireless frequency: 433.92MHz
Wireless Transmit Code: 1527Mhz (default)
Detection distance: 12m@ 25℃
Detection angle: 110 degrees
Maximum coverage area: 12m*12m
Alarm indicator light: on for 3 seconds
Working environment: indoor
Tamper switch: normally closed
-white light intensity: 10000Lux

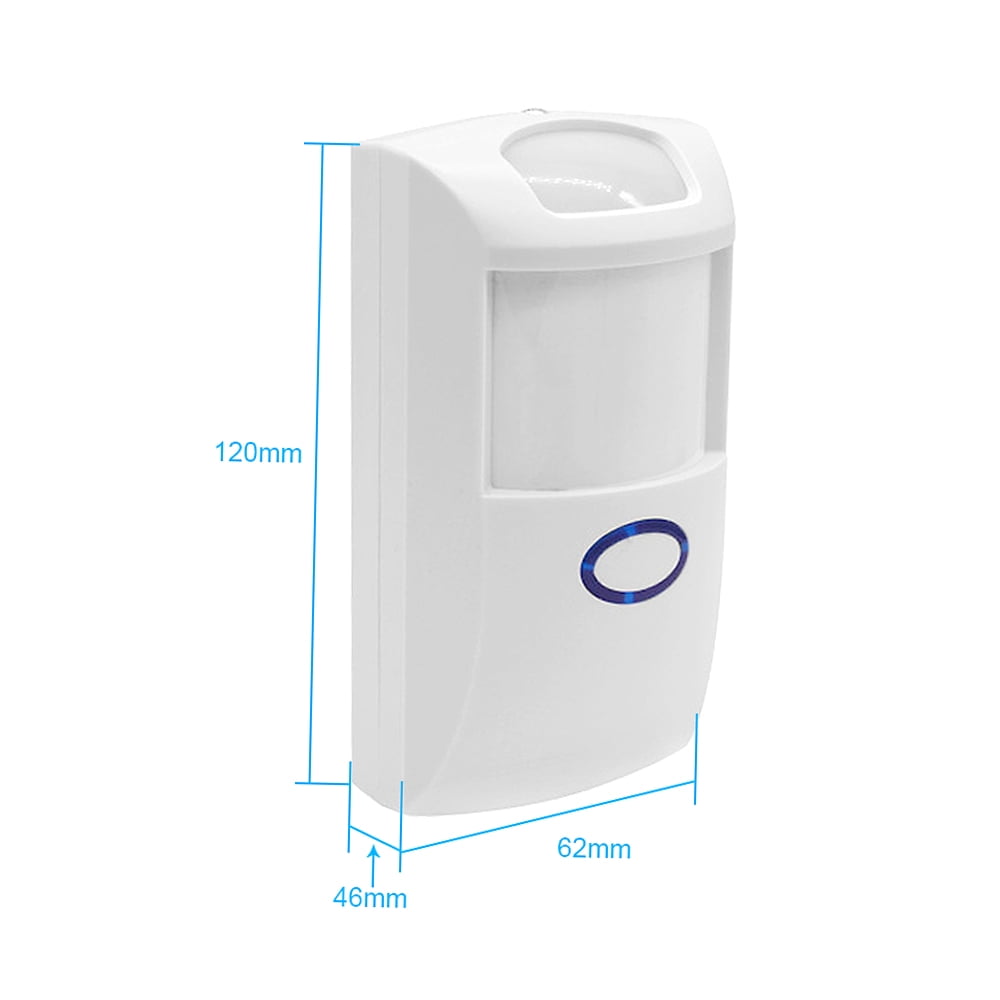

Product Size: 120*62*46mm
Weight: 120g
Package Information:
Package Size: Approx. 16.5 * 6.5 * 5.0cm / 6.5 * 2.55 *1.97in
Package Weight: Approx. 91g / 3.2oz
Packing List:
1 * PIR2 Sensor (without batteries)
PIR2 Auto PIR Sensor Dual Infrared IR Wireless Motion Detector 433Mhz RF Sensor Smart Home Automation Alarm System for Home
