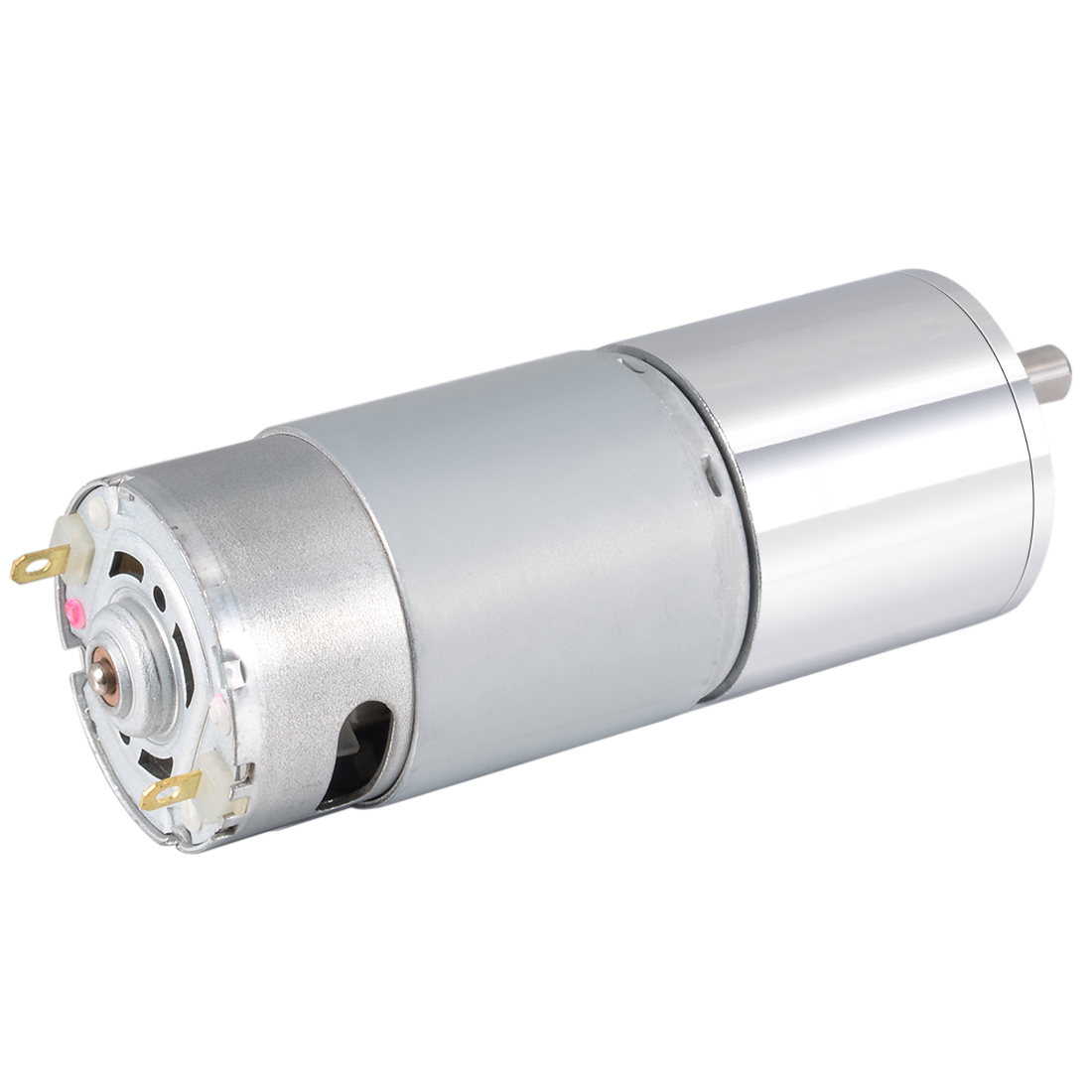

12V DC 10 RPM Gear Motor High Torque Reduction Gearbox Eccentric Output Shaft

This is our new low cost, but extremely high quality DC Gear Motor.

Specification:

No-load Speed: 10RPM at 12 Volts;
kg.cm: 10
Power: 1.8W;
No-load Current: 0.15A;
Load Current: 0.6A;
Reduction Ratio: 1: 314
D Shaft Size: 15mm x 5.9mm/0.59 x 0.23 inches (L*D);
Gearbox Size: 33mm x 37mm/ 1.3 x 1.46 inches (L*D);
Motor Size: 57mm x 37.2mm/2.24 x 1.46 inches (L*D);
Mounting Hole Size: M3 (not included).

THIRD GENERATION UPGRADE VERSION – Our company will launch third generation motors in 2018, and you will receive second or third generation motors at random. Introducing our third generation motor, using environmentally friendly materials and processes, 3rd generation products will be more environmentally friendly!
