G3/4′ Hall Effect Liquid Water Flow Sensor Switch Flowmeter Meter 3.5-12L/min

1. The Water Flow Sensor nimble outline, small size and easy to install. All materials are in line with SGS testing standards.
2. There is an integrated hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.
3. Stable, high temperature, low water pressure start, safe.
4. Can use for Water heaters, credit card machines, water vending machine, flow measurement device.

Specifications:
Product Name: Water Flow Sensor
Material: Copper
Liquid Temperature: Not More Than 60C
Max Switch Voltage: DC250V
Max Contact Rating: 70W
Max Current: 10mA
Maximum water pressure: 1.75MPa
Flow Range: 3.5-12L/min

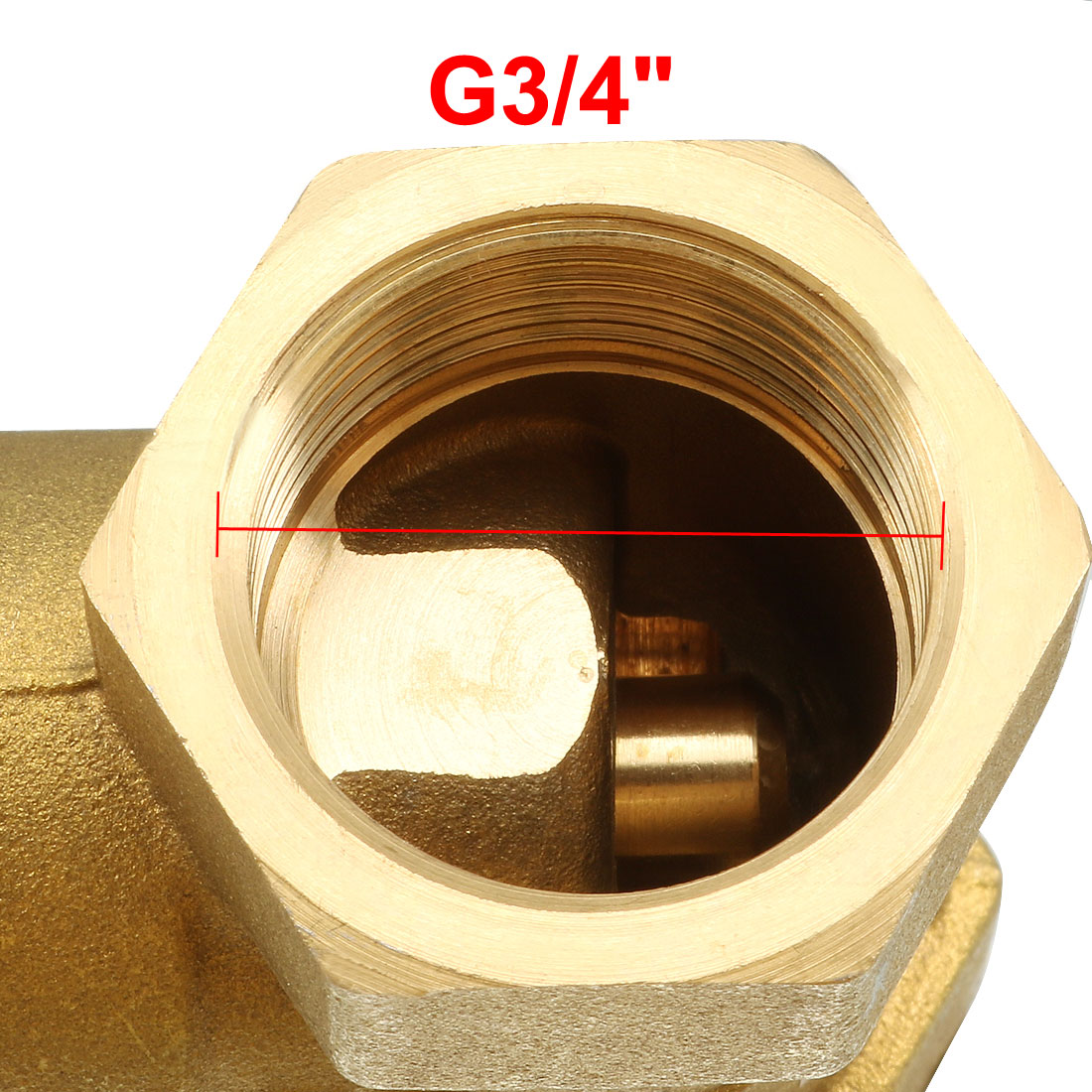

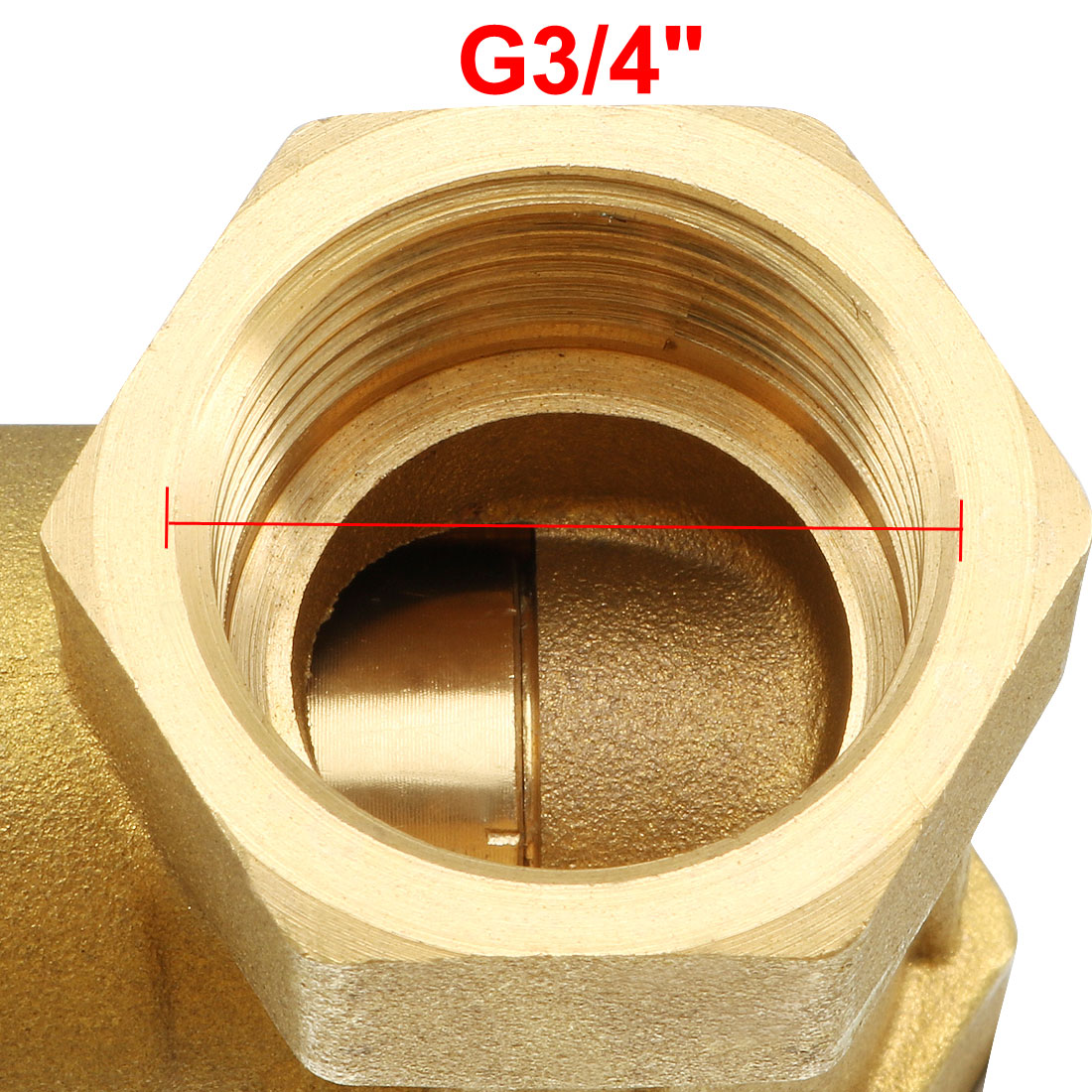

Female Thread Diameter: G3/4
Cable Length: 50cm
Size: 55mm x 32mm x 66mm(L*W*H)
Ingress Protection Rating: IP65
Color: Gold Tone
Net Weight: 269g

Package Included:
1 x Water Flow Sensor

Note:

1. Installed in accordance with flow direction in the product, otherwise there is no signal output.
2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.

• Lght weight, small size, easy to install.
• The water flow sensor is applied for water heater, and can be used as flow switch.
• Flow Range: 3.5-12L/min; Maximum Water Pressure: 1.75MPa
• Stable, high temperature, low water pressure start, safe.
