Zettaguard ZBC-100 Car Rear Vehicle Backup View Camera, Waterproof

• Perfectly solve the issue of bad car rear view effect; useful even in dark place
• Ntsc TV system; 170 degree visible range
• Professional Exterior Waterproof car rear view camera, easy to install and operate
• Hi-definition Color ccd; clear Image
• Effective pixels: 628582 pixels

Specifications:
Image Sensor: 1/4"" Color CCD PC7070
TV System: NTSC Effective Pixels: 510 * 496 Pixels
Resolution: 420

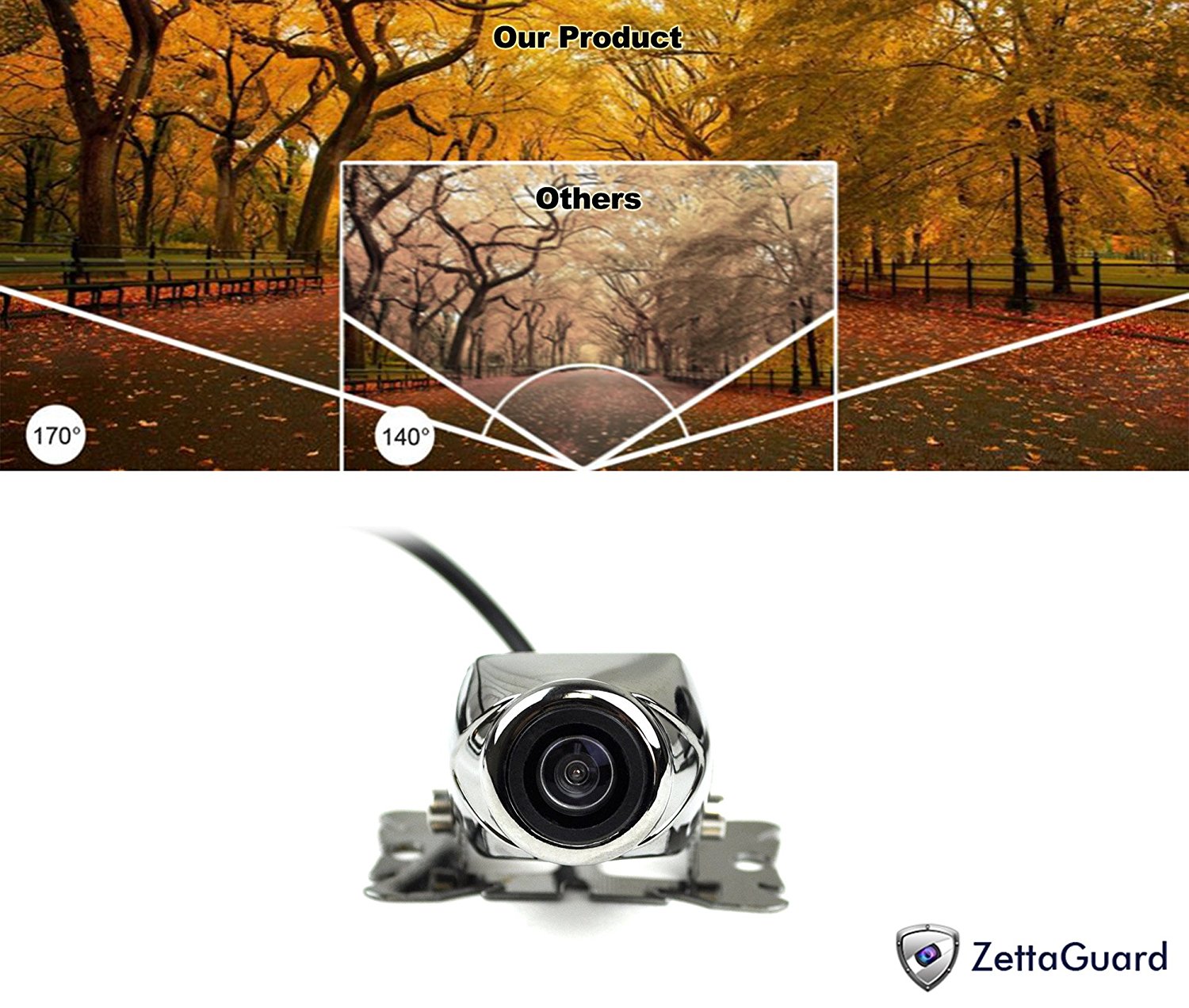

TV Lines Lens Angle: 170°
IP Rating: IP68 Shockproof
Rating: Clear video of stability in the reversing process
Video Output: RCA
Power Consumption: 120mA
Power Supply: DC 12V
Lens Material: Glass
Camera Material: Stainless Steel
Wire Material: PVC
Item Size: Approx. 1.14*1.26*0.87in
Item Weight: Approx. 1.90oz

Installation:
Step 1: Mount the camera to your car’s license plate area or other suitable places.
Step 2: Adjust the lens of camera to its best position.
Step 3: Connect power wire (Red and Black) to car?s power system and video output (Yellow wire) of camera to car?s display.

Package:
1 Zettaguard ZBC-100 Car Backup Reverse Rear View Camera
1 Power Cable(3.9feet)
1 Video Cable(19feet)
1 English Manual
