Tekpower UT202A (Uni-Trend) Auto-ranging AC 600 Amp Clamp Meter with Tekpower Line Splitter M920

Auto-ranging AC 600 Amp Clamp Meter with Tekpower Line Splitter

The TP202A(Uni-T UT202A) is an Auto/Manual range AC clamp meter, it can be used to measure AC/DC voltage and AC current. Also you can use it to measure resistance, continuity test & diode check. For your convenience, it comes with an essential piece of accessory needed for measuring AC current, a line splitter M920, which is retailed for $15.

Specifications:

Display: 1999 COUNTS
DCV : 200m/2/20/200 ± 0.8% 600V ± 1.0%
ACV: 2/20/200 ± 1.2% 600V ± 1.5%
ACA: 20A ± 2.0% 200A ± 1.5% 600A ± 2.0%
Resistance: 200 ohm ± 1.2% 2K/20K/200K ohm ± 1.0% 2M ohm ± 1.2%, 20M ohm ± 1.5%
Diode check
Continuity test
MAX. Diameter for conductor: Φ26 mm
Dimensions: 194 x 72 x 35 mm
Weight: APPROX. 200g (including battery)

Features:

Auto/manual range
Data hold

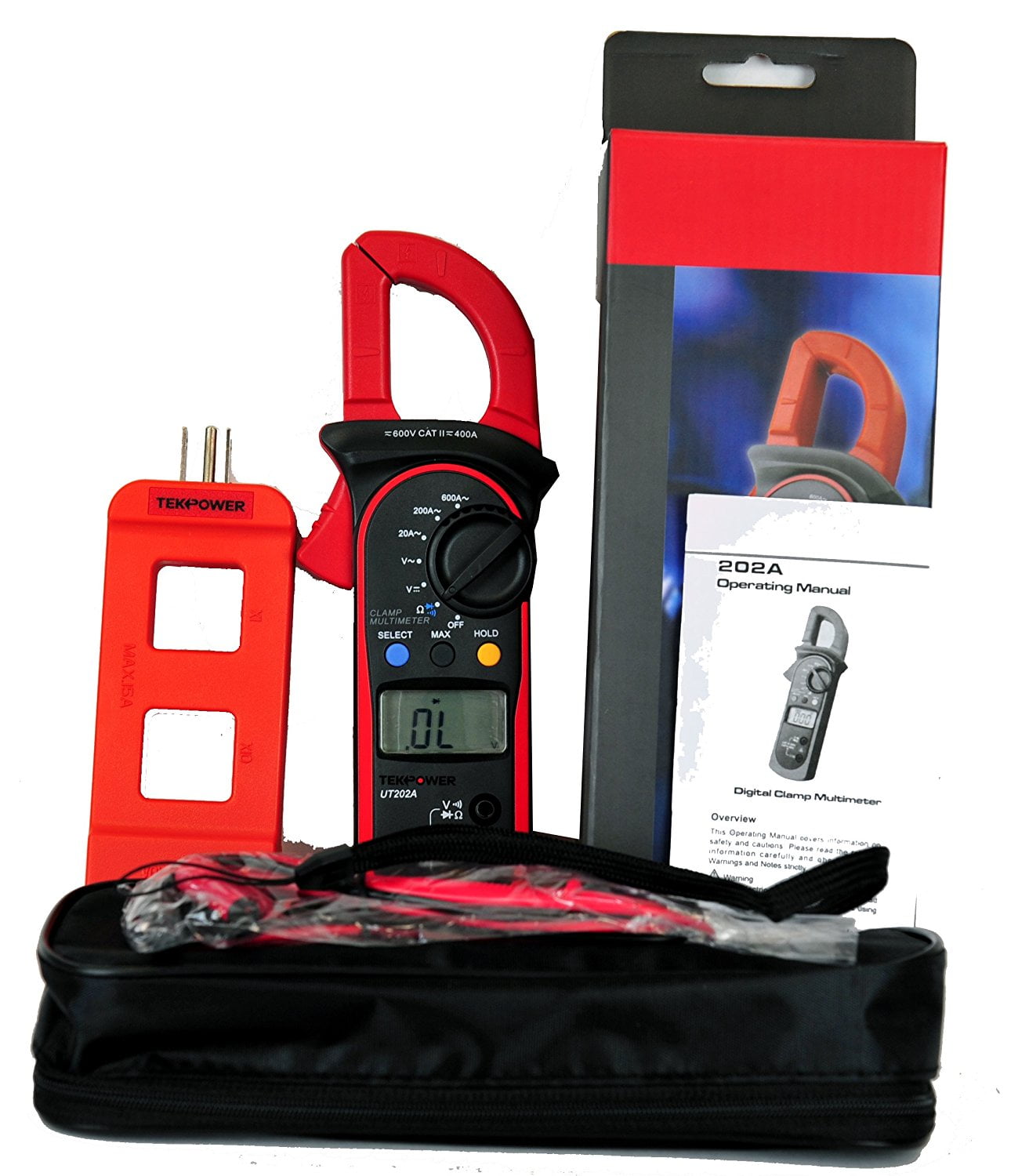

What’s in the box:

UT202A clamp meter: 1
M920 line splitter: 1
Test leads: 1 pair
User manual: 1
Carrying pouch: 1
9V Battery: 1 (installed)
Lanyard: 1
