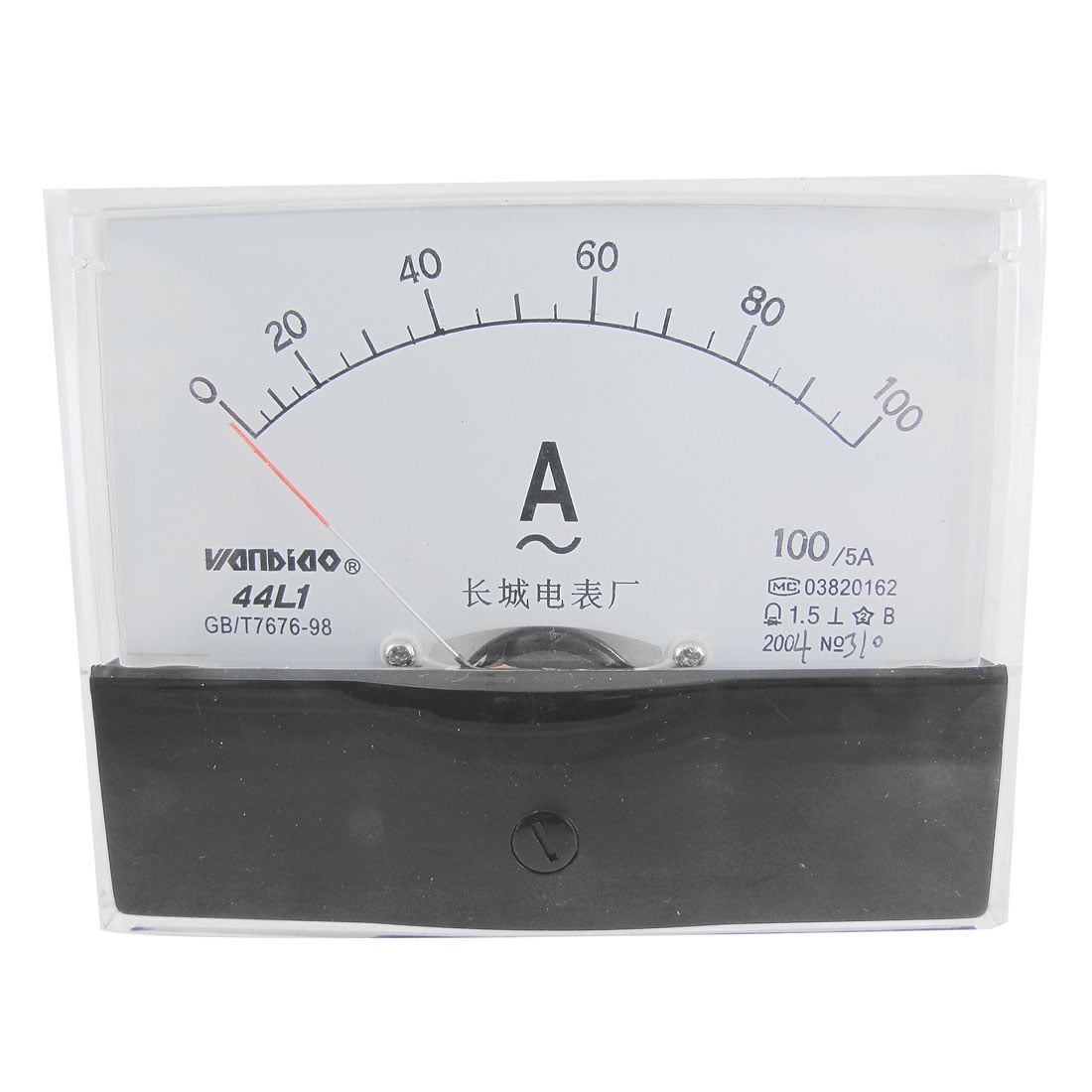

Unique Bargains 44L1-A 100x80mm Panel 100A Analog Meter Ammeter

$8.29

869 in stock

Please Note: this is not a direct connection ammeter, a 100/5A CT (i.e Current Transformer) should be used with it
Designed specially to measure current and monitor battery and electrical system.
Installed on the display panel and switch panel for the control system and power distribution systems.
Used widely in the electronics, automatic control system, mechanical equipments, shipbuilding, aviation, etc.

Accuracy Class : 1.5;Measuring Current Range : 0-100A
Front Face Size : 100 x 80 x 13.5mm / 3.9” x 3.1” x 0.5” (L*H*Depth);Base Size(Not Included Screw) : 36 x 49 x 31.5mm / 1.4” x 1.9” x 1.2” (L*H*Depth)
Overall Depth : 60.5mm / 2.4";Thread Dia. : 3.9mm / 0.15”
Material : Plastic;Net Weight : 144g

Dimensions	1 × 1 × 1 in

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
