Aviation Connector, 25mm 10P 5A 250V GX25-10 Waterproof Male Wire Panel Power

Description:
Widely used in aviation, navigation, construction site, port, dock, and some other sealing electronic equipments.
Design with a black short rubber tube on the end, mainly used for the electronical connection between the cables.
Waterproof and really a great apparatus electronic connector.
Specificatios:
Product Name:  Aviation Connector
Model: GX25-10
Terminal Number: 10 Terminals
Thread Dia: 25mm/0.98inch
Rated Voltage: 250V
Rated Current: 5A
Net Weight:  98g
Coupling: Thread couping
Insert Material: PPS
Shell Material: Zinc alloy with chrome plating
Contact Material: Barss with gold plating
Color: Silver Tone, Black
Contact Resistance: 2000Mohm
Temprtature Range: -25~80C
Qualification: CE

Package Include:
Package Content: 1 x Aviation Connecto

• Net Weight: 95g; Thread Dia: 25mm/0.98"; Color: Silver Tone, Black; Qualification: CE
• Model: GX25-10; Contact Resistance: <1.5ohm; Insulation Resistance: >2000Mohm

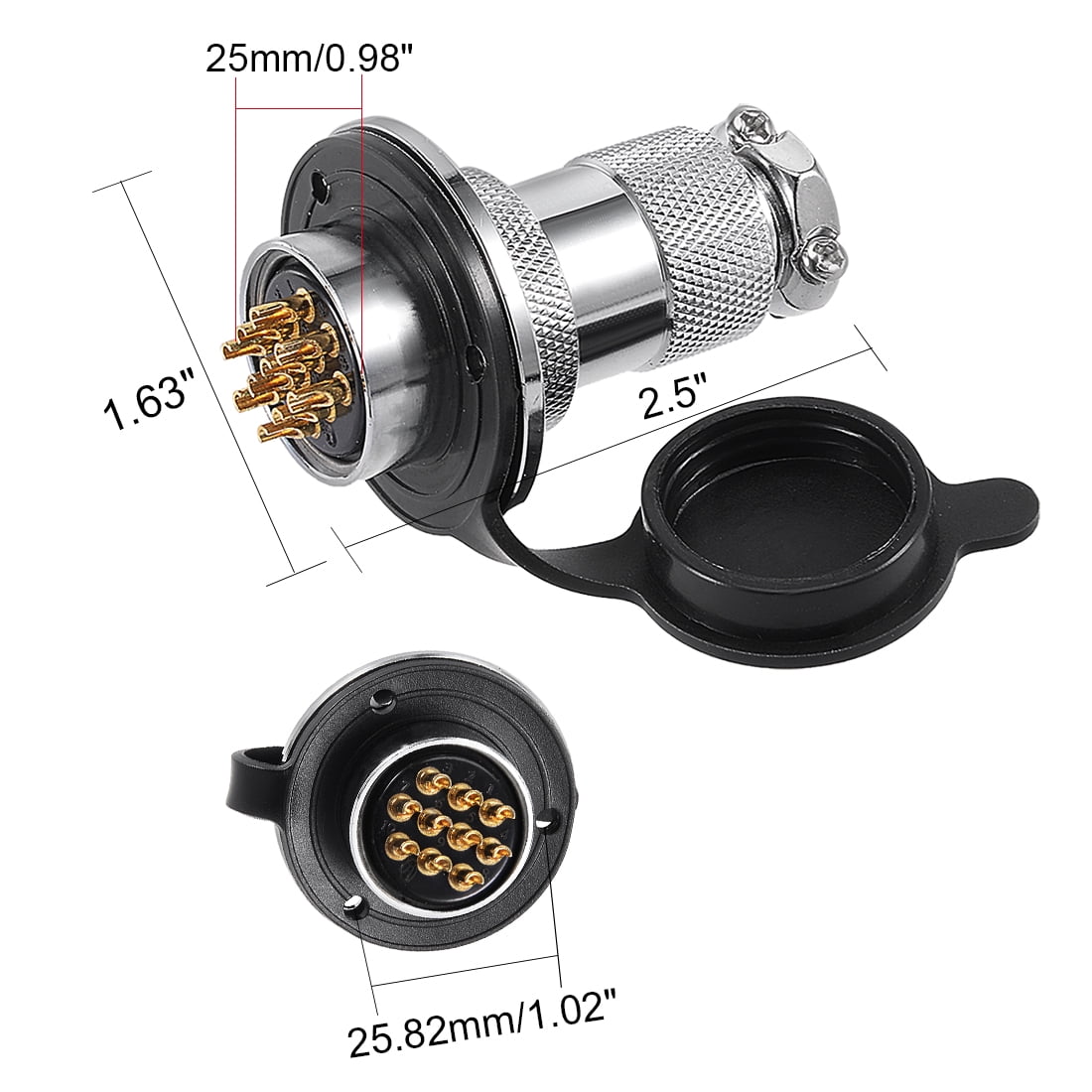

• Temprtature Range: -25~80C; Total Size: 2.5" x 1.63";Contact Material: Brass with silver plating
• Wire Hole Diameter: 10.65mm/0.42"; Terminal Diameter: 2.5mm/0.1"; Mounting Hole Distance: 25.82mm/1.02"
